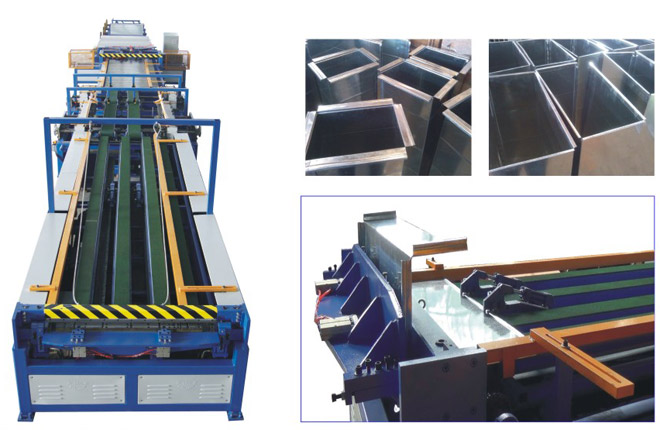

Duct production V-line is from the feeding frame, leveling pressure tendons, hydraulic punching mouth and red square mouth, hydraulic cutting plate machine, displacement joint angle jointing machine, the robot grasping material positioning feeding platform, double linkage plate flange Machine, double-linked single-bone angle iron flange machine (or double linkage buckle reel machine), servo feeding platform, TDF hydraulic folding machine, electrical control part of the whole computer control, bending servo feeding, positioning accuracy, The maximum feed speed is 16m / min, the length error is ± 0.5mm, the line can be processed TDF common plate flange, angle iron flange or cutting flange, exchange Simple and fast.
The machine features a small footprint, linear processing, high production efficiency, can create a small section of the "mouth" word duct.
Third, the basic configuration
● Electric feeding rack two (3000X1900X950X2)
● leveling, pressure tendon, punch mouth, square die, a set of shear plate device
● displacement joint angle reel bone machine a
● electric feeding platform a
● Double linkage single plate flange machine
● double linkage single bone angle iron flange machine or double linkage buckle reel machine (second choice)
● servo feeding platform a
● hydraulic bending machine one
● computer control system and production software A set of
● a cabinet
