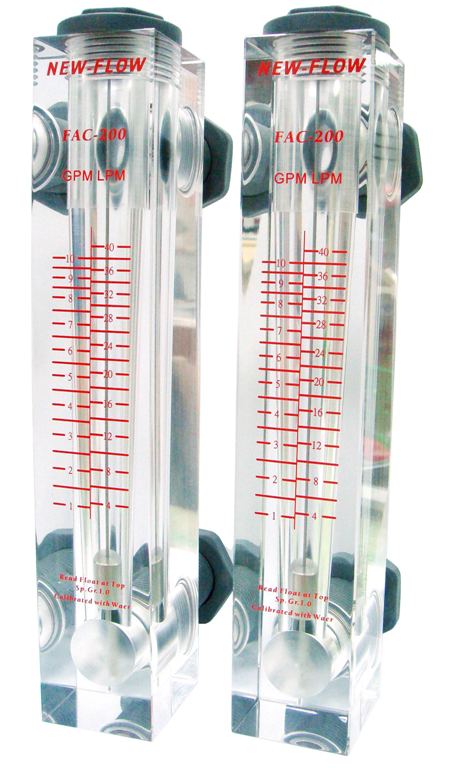

ĐỒNG HỒ ĐO LƯU LƯỢNG FAC200
Model : FAC200
Manufacture : NEW - FLOW
Service : water or liquid
Wetted parts material : Body-Acrylic, Plastic (POLYPROPYLENE), O-ring-EPDM
Float Guide : 304 stainless steel
Connection material : POLYPROPYLENE
Temperature & pressure limits : 120 psig (8.4 bar) @ 100°F(38°C)
Temperature limited : 0-45°C
Accuracy : ±3% full scale
Mounting : vertical position
Weight : 0.31kg
Range Table/ Ordering information
| MODEL |
Range Dual Scale |
Connection size
|
| GPM |
LPM |
| FAC-201 |
0.2~2.0 |
1~7.5 |
3/8" NPT(male) |
| FAC-202 |
0.5~5.0 |
2~20 |
1/2"NPT(male) |
| FAC-203 |
1.0~10.0 |
4~40 |
3/4"NPT(male) |
Dimensional Data
| Model |
A
(inch/mm) |
B
(inch/mm) |
C
(inch/mm) |
D |
E
(inch/mm) |
| FAC-201 |
8.4/213.2 |
2.75/70 |
1.38/35 |
3/8"NPT |
6.5/165 |
| FAC-202 |
8.4/213.2 |
2.75/70 |
1.38/35 |
1/2"NPT |
6.5/165 |
| FAC-203 |
9.0/229.2 |
3.75/95.2 |
1.58/40 |
3/4"NPT |
6.5/165 |
