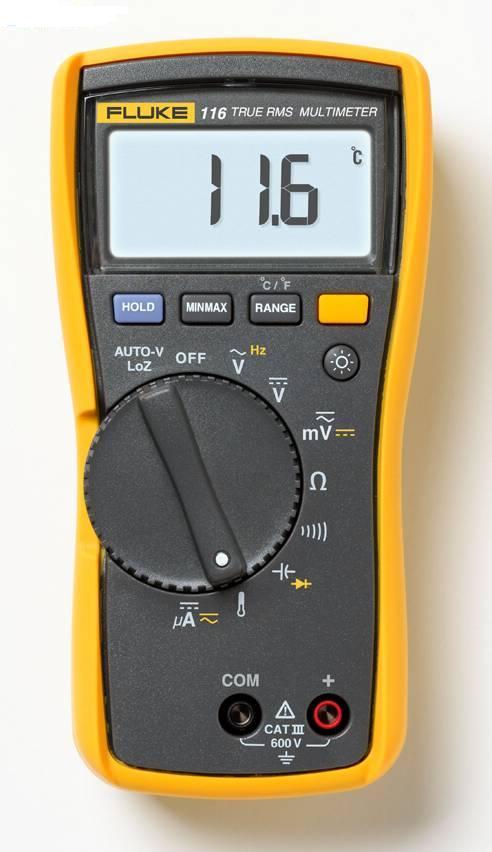

| Specifications |
| Accuracy specifications |
| Function |
Range |
Resolution |
Accuracy ±
([% of Reading] + [Counts]) |
| DC Millivolts |
600.0 mV |
0.1 mV |
0.5 % + 2 |
| DC Volts |
6.000 V
60.00 V
600.0 V |
0.001 V
0.01 V
0.1 V |
0.5 % + 2 |
AC millivolts
true-rms |
600.0 mV |
0.1 mV |
45 Hz to 500 Hz: 1.0% + 3
500 Hz to 1 kHz: 2.0% + 3 |
AC volts
true-rms |
6.000 V
60.00 V
600.0 V |
0.001 V
0.01 V
0.1 V |
45 Hz to 500 Hz: 1.0% + 3
500 Hz to 1 kHz: 2.0% + 3 |
| Continuity |
600 Ω |
1 Ω |
Beeper on < 20 W, off > 250 W;
detects opens or shorts of 500 µs or longer |
| Ohms |
600.0 Ω
6.000 kΩ
60.00 kΩ
600.0 kΩ
6.000 MΩ
40.00 MΩ |
0.1 Ω
0.001 kΩ
0.01 kΩ
0.1 kΩ
0.001 MΩ
0.01 MΩ |
0.9% + 2
0.9% + 1
0.9% + 1
0.9% + 1
0.9% + 1
1.5% + 2 |
| Diode test |
2.000 V |
0.001 V |
0.9 % + 2 |
| Capacitance |
1000 nF
10.00 µF
100.0 µF
9999 µF |
1 nF
0.01 µF
0.1 µF
1 µF |
1.9 % + 2
1.9 % + 2
1.9 % + 2
100 µF to 1000 µF: 1.9 % + 2
> 1000 µF: 5 % + 20 |
| LoZ capacitance (power-up option) |
1 nF to 500 µF |
10 % + 2 typical |
AC amps true-rms
(45 Hz to 500 Hz) |
6.000 A
10.00 A
20 A overload for 30 seconds maximum |
0.001 A
0.01 A |
1.5% + 3 |
| DC amps |
6.000 A
10.00 A
20 A overload for 30 seconds maximum |
0.001 A
0.01 A |
1.0% + 3 |
| Hz (V or A input) |
99.99 Hz
999.9 Hz
9.999 kHz
50.00 kHz |
0.01 Hz
0.1 Hz
0.001 kHz
0.01 kHz |
0.1% + 2 |
| Frequency counter sensitivity |
| Input range |
Typical sensitivity (rms sine wave) |
| 5 Hz to 45 Hz |
45 Hz to 5 kHz |
5 kHz to 10 kHz |
10 kHz to 50 kHz |
| Volts AC |
6 V
60 V
600 V |
0.2 V
2 V
20 V |
0.2V to 0.3V
2V to 3V
0V to 30V |
0.3 V to 0.4 V
3 V to 4 V
30 V to 40 V |
0.4 V to 1.0 V
4 V to 10 V
40 V to 100 V |
| AC Amps |
6 A
10 A |
N/A |
0.4 A
0.5 A |
N/A |
N/A |
| Input characteristics |
| Function |
Input impedance
(nominal) |
Common mode rejection ratio
(1 kW unbalanced) |
Normal mode rejection |
| Volt AC |
> 5 MΩ < 100 pF |
>60dB at dc, 50 or 60Hz |
- |
| Volts DC |
> 10 MΩ < 100 pF |
>100dB at dc, 50 or 60Hz |
> 60 dB at 50 or 60Hz |
| Auto-V LoZ |
~3 kΩ < 500 pF |
> 60dB at dc, 50 or 60Hz |
- |
| Ohms |
Open circuit test voltage |
Full scale voltage |
Short circuit current |
| To 6.0 MΩ |
To 6.0 MΩ |
| < 2.7 V dc |
< 0.7 V dc |
< 0.9 V dc |
< 350 µA |
| Diode Test |
< 2.7 V dc |
2.000 V dc |
< 1.2 mA |
| General specifications |
| Function |
Description |
Maximum voltage
between any
terminal and earth ground |
600 V |
| Surge protection |
6 kV peak per IEC 61010-1 600V CAT III, Pollution Degree 2 |
| W Fuse for A input |
11 A, 1000 V FAST 17 kA Fuse (Fluke PN 803293) |
| Display |
Digital: 6,000 counts, updates 4/sec; Bar Graph: 33 segments, updates 32/sec |
| Temperature |
Operating: -10°C to +50°C; Storage: -40°C to +60°C |
| Humidity |
0% to 90% to 35°C
75% to 40°C
45% to 50°C |
| Temperature coefficient |
0.1 x (specified accuracy/°C) (< 18°C or > 28°C) |
| Operating altitude |
2,000 meters |
| Battery |
9 Volt Alkaline, NEDA 1604A/IEC 6LR61 |
| Battery life |
Alkaline: 400 hours typical, without backlight |
| Safety compliances |
ANSI/ISA 82.02.01 (61010-1) 2004, CAN/CSA C22.2 No 61010-1-04, UL 6101B (2003) and IEC/EN 61010-1 2nd Edition for measurement Category III, 600 V, Pollution Degree 2, EMC EN61326-1 |
| Certifications |
UL, CSA, TUV, N10140 , VDE |
IP rating
(dust & water protection) |
IP42 |
