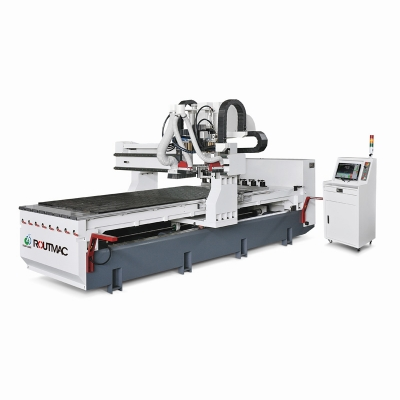

| MODEL |
|
YL-12242R+B |
YL-15302R+B |
| CAPACITY |
Max.workpiece sizes |
4 x8 feet |
5 x10 feet |
| TRAVEL |
X-axis travel |
1720 mm |
2020 mm |
| Y-axis travel |
2870 mm |
3400 mm |
| Z-axis travel |
280 mm |
280 mm |
| Spindle nose to table |
210 mm |
210 mm |
| Distance between columns |
1387 mm |
1700 mm |
| TABLE |
Table area |
1277×2500 mm |
1599×3060 mm |
| FEED RATE |
Cutting feed rate |
8 M/min |
8 M/min |
| X-axis rapid traverse |
40 M/min |
40 M/min |
| Y-axis rapid traverse |
40 M/min |
40 M/min |
| Z-axis rapid traverse |
10 M/min |
10 M/min |
| SPINDLE |
Spindle speed (Variable) |
1000~24000 rpm |
1000~24000 rpm |
| Spindle taper |
ISO 30 |
ISO 30 |
| ATC |
Magazine type |
Linear type |
Linear type |
| Tool shank |
ER 32 |
ER 32 |
| Tool numbers |
8 pcs |
10 pcs |
| Shelf |
8 pcs |
10 pcs |
| Collect |
8 pcs |
10 pcs |
| BORING UNIT |
| Power |
2.5KW boring unit 9V+4H+2S |
2.5KW boring unit 9V+4H+2S |
| Vertical spindles |
9 pcs (5 in X-axis, 4 in Y-axis) |
9 pcs (5 in X-axis, 4 in Y-axis) |
| Horizontal spindles |
4 pcs (2 in X-axis, 2 in Y-axis) |
4 pcs (2 in X-axis, 2 in Y-axis) |
| Max.sawbladeØ120mm |
2 pcs (1 in X-axis, 1 in Y-axis) |
2 pcs (1 in X-axis, 1 in Y-axis) |
| CUTTER |
Router bit sizes |
3~80 mm |
3~80 mm |
| Collect sizes |
3~20 mm |
3~20 mm |
| MOTOR |
Spindle motor |
9KW x1+2.5KWx1 |
9KW x1+2.5KWx1 |
| X-axis motor |
1.5KW(delta asda-a2) |
1.5KW(delta asda-a2) |
| Y-axis motor |
2KW(delta asda-a2) |
2KW(delta asda-a2) |
| Z-axis motor |
1.5KW(delta asda-a2) |
1.5KW(delta asda-a2) |
| Vacuum pump motor |
10 HP |
10 HP |
| OTHERS |
Air pressure required |
6 kgf/cm² |
6 kgf/cm² |
| Dimentions |
2260x4350x2060 mm |
2553x4960x2060 mm |
| N.W/G.W |
5500~6000 Kg |
5800~6300 Kg |
| Dimensions and design characteristics shown on this catalong are subject to change without prior notice |
