| Model/Item No : |

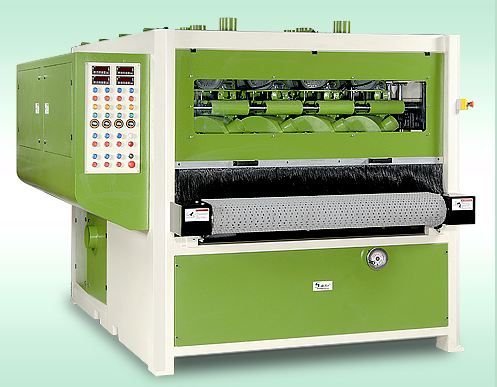

SL-1350A2 |
| Max. working width : |
53″ (1350mm) |
| Max. working height : |
5″ (127mm) |
| Min Work-pieces (For vacuum) : |
4″ (100mm) x 6.3″ (160mm) |
| Min. Work-pieces length (For hold down roller) : |
|
| Min. Work-pieces thickness : |
3/16″ (5mm) |
| Variable Feeding speed : |
50HZ (1.5~9.5 M/min)
60HZ (1.8~11M/min) |
| Speed of sanding wheel : |
200~1200 R.P.M |
| Horizontal sanding head motor : |
4 x 1-1/2HP (1.12KW) |
| Horizontal /Oscillation : |
56mm / 28RPM |
| Conveyor motor (For hold down roller) : |
2HP (0.37KW) |
| Conveyor motor (For vacuum) : |
2HP (1.5KW) |
| Moving brush head motor : |
1/4HP (0.18KW) |
| Brush Diameter : |
280mm (or) 320mm |
| Vacuum (optional) : |
1 x 15HP (1 x 11.5KW) |
| Machine Dimension ( D x W x H ) : |
185cm x 223cm x 190cm |
| Packing Dimension ( D x W x H ) : |
210cm x 230cm x 220cm |
| Net Weight (vacuum / hold down roller) : |
1450KGS / — |
| Gross Weight (vacuum / hold down roller) : |
1910KGS / — |
