Thông tin sản phẩm
Application Fields:
Solar Energy Industry
Heating Mode:
Combination of radiation and convection heating
Glass Can Be Tempered:
Flat ultra-thin glass for Solar Energy Industry

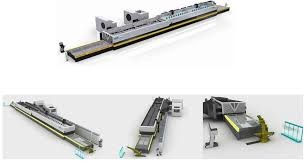

Product Introduction
To realize thermal tempering without compressed air, producing high quality ultra-thin flat tempered glass by adopting energy efficient high pressure blowers.
Technical Features
Stable product quality, reliable operation and low production costs.
Ideal for the production of ultra-thin, flat tempered glass used in household appliances and solar power industries.
Optional smart control solutions are available for comprehensive, flexible, and powerful equipment management.
High quality and lean production of tempered glass can be achieved based on state-of-the-art technologies.
Technical Parameters
| Typical Models |
A1525 |
A1220L24 |
| Max. Dimension |
1500×2500 |
1200X2000 |
| Min. Dimension |
200X250 |
200X250 |
| Glass thickness |
2.5-6mm（Tempered）2.0mm（Strengthened） |
2.5-6mm（Tempered）2.0mm（Strengthened） |
| Capacity |
18-22 loads/hour |
380 m2/hour |
| Installed capacity |
1400 |
2800 |
Note: Data presented is derived from the production of the 2.5 mm tempered glass calculated on 65% loadage. Actual productivity may vary depending on the glass types and process requirements.
