Our all models are C41-16KG, C41-20KG(integrated), C41-20KG(separate),
C41-25KG, C41-40KG(integrated), C41-40KG(separate),
C41-55KG, C41-75KG, C41-150KG.
Air hammer is widely used for general forging works, such as drawing-out, upsetting, punching,
chiseling, forging, welding, bending and twisting. It is also used for forge in bolster dies.
Air hammer is also called forging hammer, blacksmithing hammer, pneumatic forging hammer,
power hammer and so on. Air hammer falling weight at 16kg, 20kg, 25kg, 40kg, 55kg, 75kg,
150kg mainly for artistic wrought iron, artistic forging, blacksmith, agriculture tools and small open die forging parts.
SPECIFICATION
|
UNIT
|

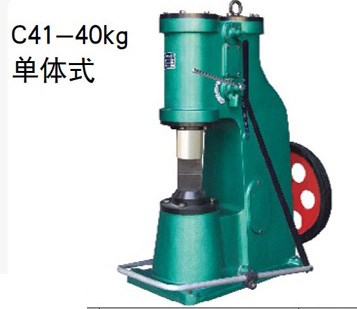

C41-40kg
|
Max. hit energy
|
kj
|
0.53
|
Height of working area
|
mm
|
245
|
Hit number
|
min -1
|
245
|
Dimension of top and bottom die surface(LxW)
|
mm
|
120 x 50
|
Max. square steel can be forged
|
mm
|
52 x 52
|
Max. round steel can be forged(Diameter)
|
mm
|
¢68
|
Motor power
|
kw
|
4
|
Speeds of motor
|
r. p. m
|
1440
|
Anvil weight
|
kg
|
400
|
Total weight
|
kg
|
1350
|
Overall dimensions(L*W*H)
|
mm
|
1080*600*1430
|
