Thông tin sản phẩm
+ FEATURES
(1) High sensitivity in the dark environment, 0.2 Lux / F2.0, 0 Lux (IR ON)
(2) Day and night features for 24-hour surveillance
(3) Excellent image quality
(4) IR LED effective range reaches up to 25 meters
(5) IP67, suitable for outdoor use
+ SPECIFICATIONS*
|

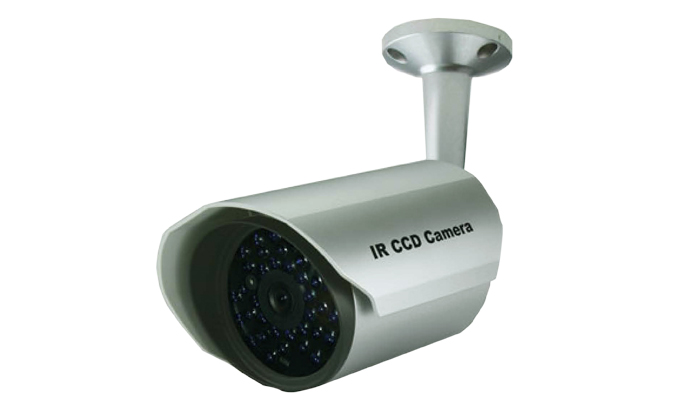

MODEL
|
KPC139B
|
|
Pick-up Element
|
1/3" Color CCD image sensor
|
|
Number of Pixels
|
512(H)X492(V) / 512(H) x 582(V)
|
|
Resolution
|
Standard
|
|
Min. Illumination
|
0.2 Lux / F2.0, 0Lux (IR ON)
|
|
IR LED
|
35 units
|
|
IR Effective Range
|
25 Meters
|
|
S/N Ratio
|
More than 48dB (AGC off)
|
|
Electronic Shutter
|
1/60 (1/50) to 1/100,000 sec.
|
|
Lens
|
f3.6mm / F2.0
|
|
Lens Angle
|
92.6°
|
|
White Balance
|
ATW
|
|
AGC
|
Auto
|
|
IRIS Mode
|
AES
|
|
IP Rating
|
IP67
|
|
Video Output
|
1.0 Vp-p composite, 75Ω
|
|
Operating Temperature
|
0℃~40℃
|
|
Power Source (±10%)
|
DC12V
|
|
Current Consumption (±1
|
90mA (IR OFF), 340mA (IR ON)
|
|
Gross Weight (g)
|
430
|
|
Dimensions (mm)**
|
142(H) x 75 (Φ)
|
* The specifications are subject to change without notice.
** Dimensional Tolerance: ± 5mm
