| Model |

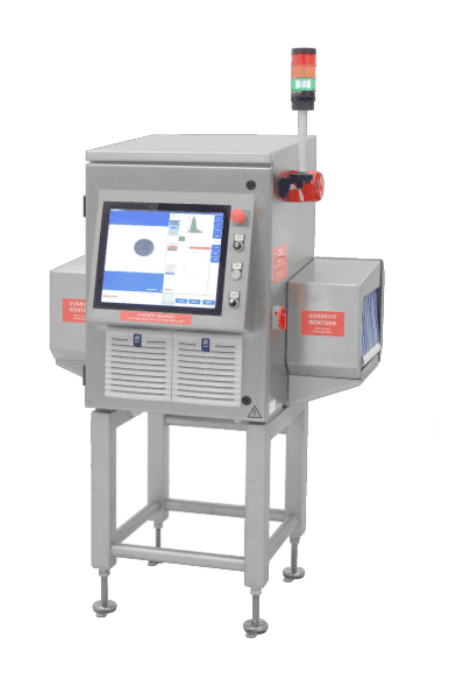

XRAY SHARK® XBD10 |
| X-ray source |
Single beam x-ray generator with max. 80kV (100W), variable in voltage + current |
| Leakage Radiation |
1 µSv/h or less @ 10cm outside cabinet surfaces |
| Safety |
X-ray protective curtains
Magnetic safety switches at cabinet doors and tunnel hatches, emergency
OFF push button, x-ray OFF key switch,
Emergency STOP in/out interfaces to safety circuits of production line |
| X-ray detector |
low noise 307 mm line scan CCD, diode pitch 0.8 mm, integrated x-ray
beam stop |
| Cooling |
Integrated oil cooling: sealed circuit, maintenace free |
| Housing finish |
Stainless steel grade AISI 304 / ISO 1.4301 (CrNi 18/10) |
| Degree of protection |
IP54 (according to IEC 60529), including touch panel and fans |
| Conveyor type |
Polyurethane belt white (FDA), quick disassembly for cleaning |
| Conveyor speed |
Conveyor speed by product, 0,05 to 0,98 m/sec (7 fixed speed steps) |
| Display |
17“ Color-TFT capacitive Touchscreen |
| Product Memory |
250 different product set-ups |
| Weight |
250 kg |
| Environmental |
0 to +30 ° C, with relative humidity max 90% non-condensing |
| Power supply |
230 VAC, 1ph, 50 to 60 Hz, 0.3 kW full operation, <0.1 kW stop/idle |
Compressed air
consumption |
Without pusher 0 (zero) liters / hour
With optional pusher system depending on application |
| Inspection features |
Auto Calibration, Auto adaption to density distribution, Density, Hard
Contrast, Soft Contrast, Masking Technology, SuperContrast, SizeFilter,
AutoEdge, Images AutoSave/Load, Multi Segment Inspection, Metal Foil
inspection, Fill Quantity, Generator Energy by Product, Password protection |
Data Transfer and
Reporting |
Ethernet for remote support via internet USB for external keyboard/
mouse/ memory stick |
| Supplied test equipment |
Certified test cards with glass, ceramics, steel spheres in various diameter |
| Conformity |
CE, compliant to German x-ray regulations, specific adaptation for other
countries |
| Available Accessories |
Radiation detector, SHARKNET® data management software,
Separate conveyor with pusher, BRC compliance kit |
