| Specifications |

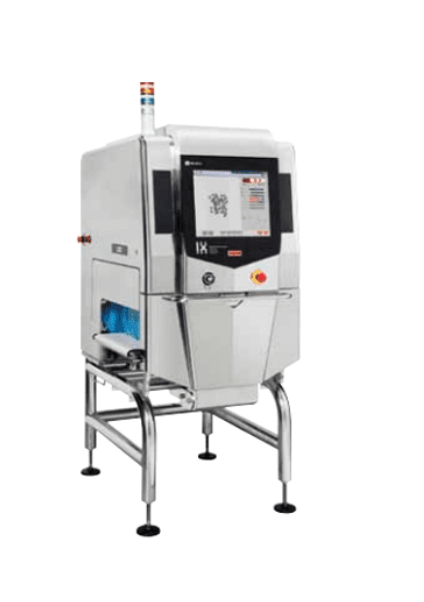

IX-G2-4027 |
Inspection
range |
Length |
20 to 450mm (snap mode) Interval between inspection objects: 30mm |
| Width |
400mm |
| Height |
Max: 150mm |
Inspection
conveyor
dimension |
Length |
800mm (Option to increase) |
| Width |
430mm |
| Height |
Height to belt 900mm (+/-50mm) |
| Transfer speed |
Transfer speed 10 to 60 m/min |
| Transfer weight |
Max. 5kg (Standard) |
| X-ray output |
Max. 350W / 100 kV / 5mA |
| Operating section |
17” TFT LCD Touch screen Windows-XP OS |
| Number of items that can be preset |
100 items (expanable) |
| Machine outside dimension |
800mm (L) x 1290mm (D) x 2170mm (H) |
| Machine weight |
400kg (excluding option) |
| Machine material & finish |
Stainless Steel (SUS304) in beed blast finish |
| Machine protective construction |
IP66 (conveyor room) IP65 (outside conveyor room) |
| Cooling method |
Hermetical Air Cooling |
| X-ray protection |
Protective Tungsten curtain (rapidly detachable) |
| X-ray leakage radiation dose |
1uSv/h or less (including conveyor transfer entrance/exit) |
| Power supply |
Single phase AC200-240V, 50/60 Hz, +/- 10% |
| Operation enviroment |
Temperature: 0 to 35 degree (no rapid temeperture change)
Humidity: 30 to 85%RH (without condensation) |
