Model
|

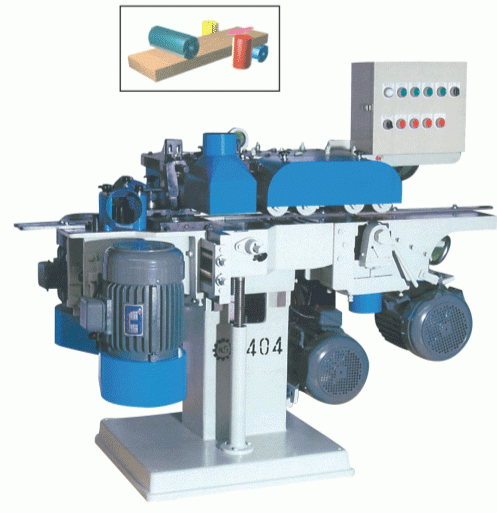

HS-404
|
HS-604
|
|
Working capacity (W×T)
|
100×75 mm
|
150×75 mm
|
|
Spindle
-Upper
-Vert.
-Lower
|
5 HP
3 HP×2
3 HP
|
5 HP
3 HP×2
3HP
|
|
Feeding motor
|
1 HP
|
2 HP
|
|
Min. Planning width
|
25 mm
|
25 mm
|
|
Min. Planning length
|
300 mm
|
300 mm
|
|
Spindle diameter
-Upper
-Vert.
-Lower
|
φ31.75 or 30 mm
φ25.4 or 30 mm
φ25.4 mm
|
φ31.75 or 30 mm
φ25.4 or 30 mm
φ25.4 mm
|
|
Spindle speed
-Upper
-Vert.
-Lower
|
7200 rpm
7500 rpm
5000 rpm
|
7200 rpm
7500 rpm
5000 rpm
|
|
Cutter size
-Upper
-Vert.
-Lower
|
φ100×150 L
φ99×70 L
φ80×100 L
|
φ100×150 L
φ99×70 L
φ80×150 L
|
|
Dust outlet diameter
|
φ100 mm
|
φ100 mm
|
|
Feeding rate (M/min)
|
2.5~15 M/min
(vari - speed)
|
2.5~15 M/min
(vari - speed)
|
|
Infeed table length
|
1380 mm
|
1380 mm
|
|
Packing size (mm)
|
1780×1200×1410
|
1780×1260×1410
|
|
Net / Gross Weight
|
700 / 750 kgs
|
720 / 770 kgs
|
