| Standard Features |

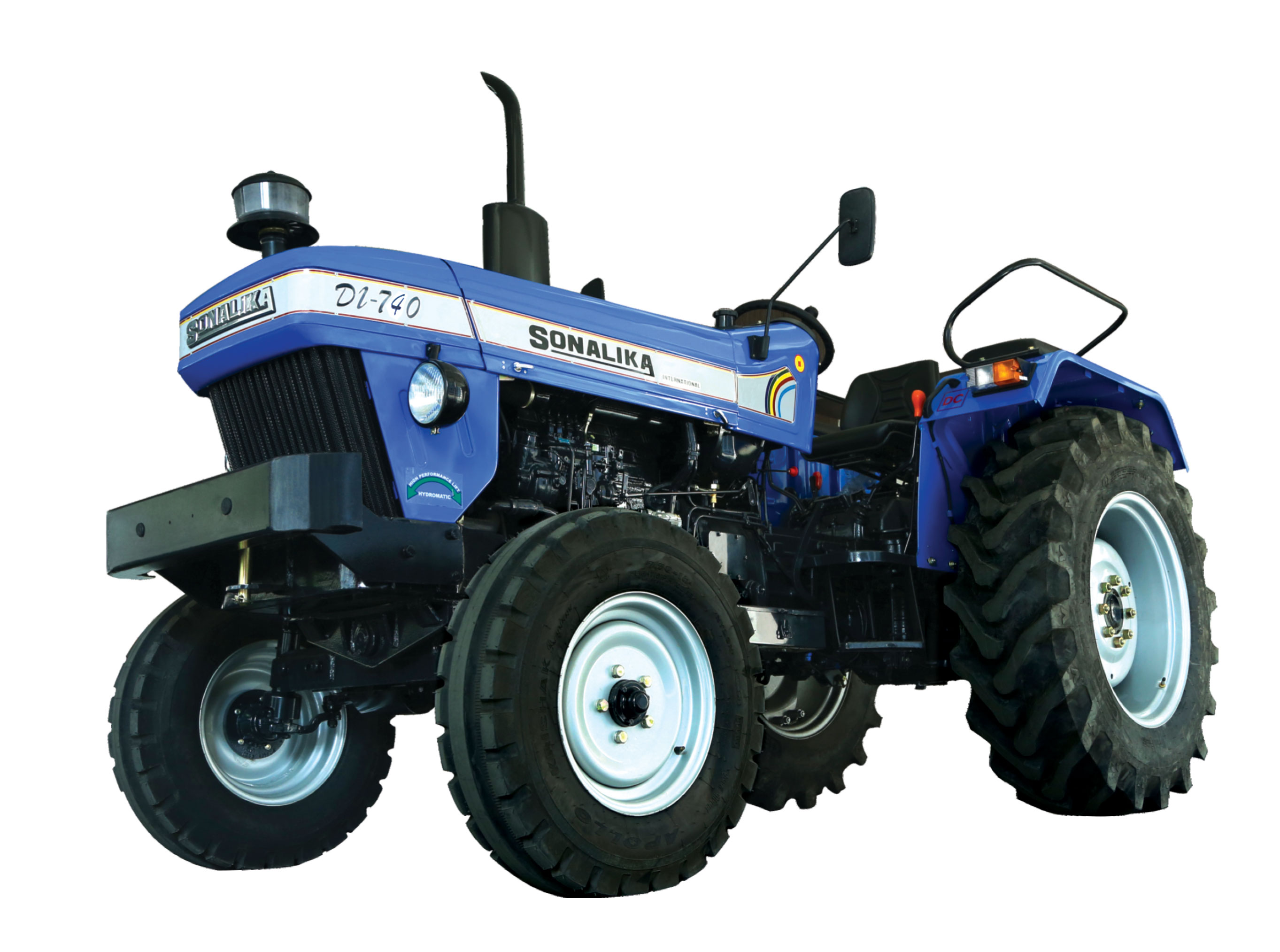

DI-740 2WD |
| Engine |
| Engine Type |
Simpson,S325 engine without coldstart |
| HP Category |
45 |
| No. of Cylinders |
3 |
| Aspiration |
Natural Aspiration |
| Bore/Stroke(mm) |
91.4/127 |
| Cubic Capacity (cc) |
2500 |
| Rated RPM (+/-25mm) |
2000 |
| Air cleaner |
Wet Air Cleaner |
| Max Torque (Nm) @ RPM |
165.7Nm @ 1200-1400 RPM (+/-5%) |
| Transmission |
| Drive |
2WD |
| Clutch |
Single Clutch |
| Gearbox |
8F+2R |
| Transmission |
Constant Mesh |
| PTO |
| PTO (rpm) |
1000 rpm |
| PTO (actuation) |
Mechanical,Hand operated |
| Diff Lock |
| Diff. Lock(mechanical) |
Yes , Foot Operated |
| Electrical |
| Battery |
12V,88 AH |
| Alternator |
12V,36Amp |
| Seven pin trailer socket |
Yes |
| DCV |
| Auxiliary hydraulic circuit |
1SA |
| No.of Spool valves |
1 |
| Steering |
| Steering |
Mechanical |
| Tyre |
| Front |
6*16 |
| Rear |
13.6*28 |
| Speed(Forward) |
| Max Speed(Km/Hr) |
28.57 @ 2000 |
| Min Speed(Km/Hr) |
3.09 @ 2000 |
| Hydraulics |
| 3 point linkage |
CAT2 |
| Stay Bars |
Yes, Adjustable |
| Hydraulic lifting capacity |
1200 kg |
| Brakes |
| Brakes |
Dry Disc Brakes |
| Type of actuation |
Mechanical |
| Hand brake |
Yes |
| Others |
| Fuel Indicator gauge |
Yes |
| Canopy |
No |
| Trailer hitch |
Standard rear toe hook |
| Driver Seat |
Yes,Adjustable with safety Emblem. |
| Registration Plate with light |
No |
| Front Toe Hook |
No |
| Front & rear weights |
Bumper only |
| Drawbar |
Normal Drawbar |
| ROPS |
No |
| Safety Switch |
| Neutral safety switch |
No |
| P.T.O Safety switch |
No |
| Clutch Safety Switch |
No |
| Capacity (ltrs)(+/-5%) approx |
| Fuel tank |
56 |
| Eng Oil |
7 |
| Hyd+Tran |
50.3 |
| Dimension & Weight(+/-5%) |
| Gross Weight(kg) |
1850 ( unballasted ) |
| Wheel Base (mm) |
1955 |
| Total Length (mm) |
3510 |
| Total Width (mm) |
1710 |
| Height (mm) |
2270 |
| Ground Clearance (mm) min |
390 (below steering ram cylinder guard) |
| Front Track, (mm), min.-max. |
1315 |
| Rear Track, (mm), min.-max. |
1316 (Std.) 1460-1910 |
| Turning Diameter |
| Without Brakes (m) |
6.37 m ( R ) – 6.51 m ( L ) |
| With Brakes (m) |
5.83 m ( R ) – 5.93 m ( L ) |
