| Standard Features |

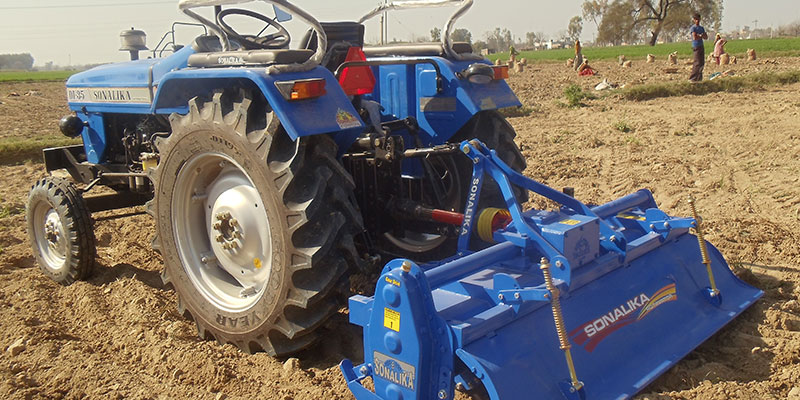

DI-35
|
| Engine |
| Engine Type |
3100 FLS without coldstart |
| HP Category |
35 |
| No. of Cylinders |
3 |
| Aspiration |
Natural Aspiration |
| Bore/Stroke(mm) |
100/118 |
| Cubic Capacity (cc) |
2780 |
| Rated RPM (+/-25mm) |
2000 |
| Air cleaner |
Wet air cleaner |
| Max Torque (Nm) @ RPM |
157(+/-5%)@1200 RPM(+/-100) |
| Transmission |
| Drive |
2wd |
| Clutch |
Single clutch |
| Gearbox |
8F+2R |
| Transmission |
Constant Mesh |
| PTO |
| PTO (rpm) |
1000 |
| PTO (actuation) |
Mechanical,Hand operated |
| Diff Lock |
| Diff. Lock(mechanical) |
No |
| Electrical |
| Battery |
12V,88 AH |
| Alternator |
12V,36 Amp |
| Seven pin trailer socket |
Yes |
| DCV |
| Auxiliary hydraulic circuit |
No |
| No.of Spool valves |
No |
| Steering |
| Steering |
Mechanical Steering |
| Tyre |
| Front |
6*16 |
| Rear |
12.4*28 |
| Speed(Forward) |
| Min Speed(Km/Hr) |
2.83 @ 2000 |
| Max Speed (Km/Hr) |
29.4 @ 2000 |
| Hydraulics |
| 3 point linkage |
CAT2 |
| Stay Bars |
Adjustable check chain |
| Hydraulic lifting capacity |
1200 KG |
| Brakes |
| Brakes |
Oil Immersed brakes |
| Type of actuation |
Mechanical |
| Hand brake |
Yes |
| Others |
| Driver Seat |
Yes,Adjustable with safety Emblem. |
| Trailer hitch |
Standard rear toe hook |
| Fuel Indicator gauge |
Yes |
| Canopy |
No |
| Registration Plate with light |
No |
| Front Toe Hook |
yes |
| Front & rear weights |
Base weight 54 kg |
| Drawbar |
Linkage cross baar |
| ROPS |
No |
| Safety Switch |
| Neutral safety switch |
No |
| P.T.O Safety switch |
No |
| Clutch Safety Switch |
No |
| Capacity (ltrs)(+/-5%) approx |
| Fuel tank |
55 |
| Eng Oil |
8.2 |
| Hyd+Tran |
50.3 |
| Dimension & Weight(+/-5%) |
| Gross Weight(kg) |
1990(Unballast) |
| Wheel Base (mm) |
1970 |
| Total Length (mm) |
3550 |
| Total Width (mm) |
1740 |
| Height (mm) |
2310 ( upto exhaust pipe) |
| Ground Clearance (mm) min |
400 (below Transdrain plug) |
| Front Track, (mm), min.-max. |
1315 std. & 1540 |
| Rear Track, (mm), min.-max. |
1320 std. & 1445-1885 |
| Turning Diameter |
| Without Brakes (m) |
6.35 m ( R ) – 6.35 m ( L ) |
| With Brakes (m) |
5.6 m ( R ) – 5.80 m ( L )
|
