Thông tin sản phẩm
THÔNG SỐ KỸ THUẬT

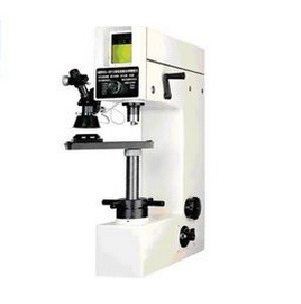

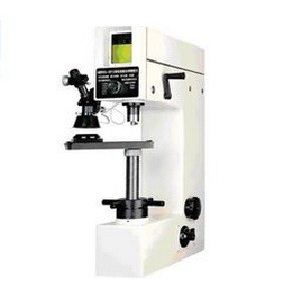

Máy đo độ cứng HBRV-187.5S
Đo độ cứng kiểu Rockwell:
Thang lực: lực ban đầu: 98.07(10kg)
Tổng lực: 588.4(60kg)/ 980.7(100kg)/ 1471(150kg)
Độ chính xác: ±1.0%
Indenter :Ф1.5875mm Ball Indenter
HRA/ HRB/ HRC/ HRD
Đo độ cứng kiểu Brinell
Thang lực: 294.2N (30kg)/ 306.5N(31.25kg)/ 612.9N(62.5kg)
980.7N(100kg)/ 1839N(187.5kg)
Độ chính xác: 1%
Indenter: φ2.5mm,φ5mmBall Indenter
HBW1/30 - HBW2.5/31.25 - HBW2.5/62.5 - HBW5/62.5
- HBW10/100 - HBW2.5/187.5
Độ phân giải 0.5μm
Đo độ cứng kiểu Vicker
Thang lực: 294.2N(30kg)/ 980.7N(100kg)
Độ chính xác: 1%
HV30/ HV100
Độ phân giải: 0.25μm
Nguồn điện: AC220V±5%, 50-60 Hz
Thời gian giữ tải: 0~60s
Kích thước: 551×260×800 mm
Khối lượng: 80kg
Technical specifications
1. The Power Source and the Voltage: AC220V±5%, 50-60 Hz
2.Time-delayed control: 0-60 seconds, adjustable
3.The Distance from the Indenter Center to the Instrument Body: 165mm
4.Overall Dimension (Length×Width×Height): 551×260×800 mm
5.The Net Weight of the Tester: 80kg (Approx)
6.Specifications of Rockwell Hardness
|
Testing force(N)
|
Initial Testing Force
|
98.07(10kg)
|
Tolerance ±2.0%
|
|
Total testing force
|
588.4(60kg)
|
Tolerance ±1.0%
|
|
980.7(100kg)
|
|
1471(150kg)
|
|
Indenter
|
Diamond Cone Indenter
|
|
Ф1.5875mm Ball Indenter
|
|
Scales
|
HRA
|
HRB
|
HRC
|
HRD
|
|
Max height of samples
|
175mm
|
7.The Tolerance of Rockwell Hardness Display Value
|
Hardness Scale
|
HardnessRangeof The Standard Testing Blocks
|
The Max. Tolerance of Display Value
|
Repeatabilitya
|
|
HRA
|
(20~≤75)HRA
|
±2HRA
|
≤0.02(100－H)or
0.8 Rockwell Unitb
|
|
(＞75~≤88)HRA
|
±1.5HRA
|
|
HRB
|
(20~≤45)HRB
|
±4HRB
|
≤0.04(130－H)or
1.2 Rockwell Unitb
|
|
(＞45~≤80)HRB
|
±3HRB
|
|
(＞80~≤100)HRB
|
±2HRB
|
|
HRC
|
(20~≤70)HRC
|
±1.5HRC
|
≤0.02(100－H)or
0.8 Rockwell Unitb
|
|
a:H is average hardness value b:Confirm as higher value
|
8.The Technical Specification of Brinell Hardness Tester
|
Testing force
|
294.2N(30kg)
|
Tolerance ±1.0%
|
|
306.5N(31.25kg)
|
|
612.9N(62.5kg)
|
|
980.7N(100kg)
|
|
1839N(187.5kg)
|
|
Indenter
|
φ2.5mm,φ5mmBall Indenter
|
|
Scales
|
HBW1/30
|
HBW2.5/31.25
|
HBW2.5/62.5
|
|
HBW5/62.5
|
HBW10/100
|
HBW2.5/187.5
|
|
Eyepiece magnification
|
15×
|
|
Objective
|
2.5×(resolution 0.5μm),5×(resolution 0.25μm)
|
|
Max Height of Sample
|
For 2.5×:Max Height is 95mm
For 5×:Max height is 115mm
|
9. The Tolerance and Repetition of Displayed Value for Brinell Hardness Tester
|
Hardness Block(HBW)
|
Tolerance(%)
|
Repeatability (%)
|
|
≤125
|
±3
|
3
|
|
125＜HBW≤125
|
±2.5
|
2.5
|
|
＞225
|
±2
|
2
|
10. Technical Specifications of Vickers Hardness
|
Test force
|
294.2N(30kg)
|
Tolerance ±1.0%
|
|
980.7N(100kg)
|
|
Indenter
|
Diamond Vickers Indenter
|
|
Scale
|
HV30
|
HV100
|
|
Eyepiece magnification
|
15×
|
|
Objective magnification
|
5×(Resolution 0.25μm)
|
|
Max. Height of Specimen
|
115mm
|
11. The Tolerance and Repetition of Displayed Value for Vickers Hardness Tester
|
Tolerance of Displayed Value
|
Repetition of Displayed Value
|
|
Hardness scale
|
Value of Hardness Block
|
Tolerance of Displayed Value
|
Value of Hardness Block
|
Repetition of Displayed Value
|
|
HV30
HV100
|
≤250HV
|
±3%
|
≤225HV
|
6%
|
|
300~1000HV
|
±2%
|
＞225HV
|
4%
|
