Thông tin sản phẩm
ỨNG DỤNG:
Đo độ cứng của Thủy tinh, Gốm sứ, Mã não, Đá quý, độ cứng của nhựa mỏng.
Đo độ cứng của kim loại đen, kim loại màu, IC, độ cứng lớp phủ vật liệu, độ cứng của lớp kim loại.
ĐO độ cứng của các lớp Cacbon và lớp mạ nhúng
THÔNG SỐ KỸ THUẬT

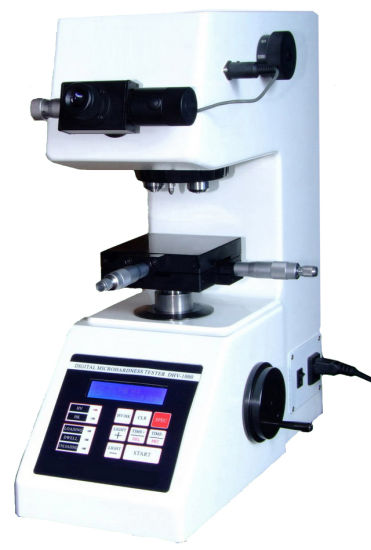

Máy đo độ cứng thủy tinh MHV-2000 là dòng máy kỹ thuật số được dùng để đo độ cứng thủy tinh, gốm, sứ (1HV - 2967HV 110V / 220V)
Đặc điểm chính
MHV-2000 Micro Vickers Hardness Tester made with a unique and precise design in the field of mechanics , optics and light source is able to produce a clearer indentation and hence a more precise measurement. By means of a 20×lens and a 40×lens the tester has a wider measurement field and a broader usage range. Equipped with a digital microscope, it shows the measuring methods, the test force, the indentation length, the hardness value, the dwell time of the test force as well as the number of the measurements——all shown on its LCD screen .Besides, it has such functions as registering the date, and measuring results , treating the data , outputting the information with the printer, and carrying out the operations of directly showing the measure number , exchanging the scales among the 17 scales , putting the data into the bank and linking to RS232 interface and to the digital camera and CCD pickup camera with a threaded interface . The instrument is, therefore, quite advanced and representative of the products of the same kind in the country.
Usage Range
Ferrous metals, non-ferrous metals, IC thin sections, coatings, ply-metals;
Glass, ceramics, agate, precious stones;
Hardness testing such as that on the depth and the trapezium of the carbonized layers and quench hardened layers.
Technical Features of micro vickers hardness tester
Test Forces:(0.098, 0.246, 0.49, 0.98, 1.96, 2.94, 4.90, 9.80 upto 19.60) N (10, 25, 50, 100, 200, 300, 500, 1000 upto 2000) gf
Carriage Control: automatic ( loading / holding-up of the load / unloading )
Amplification of the Microscope: 200 ×, 400 ×
Dwell Time of the Test Force: (5-60)s
Min. Graduation Value of the Testing Drum Wheel: 0.0625um
Testing Field: 1HV—2967HV
Dimension of the XY Table: 100 × 100 mm
Movement Field of the XY Table: 25 × 25mm
Max. height of the specimen : 70 mm
Max. width of the specimen : 95mm
Output : installed with a printer and a RS232 serial interface
Light source : cold light source
Power Supply : 110V/220V, 60/50Hz
Dimension: (425 × 245 × 490)mm
Weight: 30Kg
