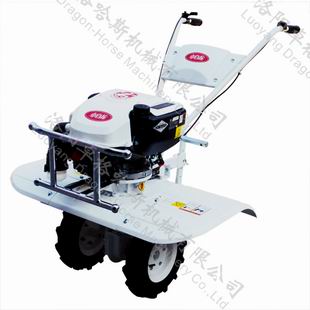

Main Function:Rotary tilling,mud mixing in paddy field.
Main Application Range:Dry land,paddy land.
Features:
1)A vertical output axle, all gear system.
2)Small volume,light weight,compact structure.
3)Clutch special design for paddy field.
4)Automatic clutch,stepless speed change,easy operate.
5)Fuel tank position special design to make sure oil feeding no interrupt.
6)It’s convenient that a tool kit fix on the handlebar.
7)A special splash proof design of shield for engine and rotary blade.
♦Zhongshen power,easy start.
♦Ⅱ type of engine fender frame,a better effect.
Main Technical Parameter:
| Engine Type |
|
single cylinder,vertical shaft,4 stroke,air cooled |
|
Max Power Output HP(kw)/rpm |
|
7(4.1)/3600 |
| Engine Model |
|
VP200 |
|
Fuel Consumption (L/acre) |
|
1.1 |
| Transmission |
|
All gear driving |
|
Efficiency(acre /h) |
|
1.5 |
| Gear Shifting |
|
Stepless speed |
|
Fuel Tank capacity (L) |
|
2.5 |
| Starting |
|
Recoil start |
|
Displacement (cc) |
|
196 |
| Main Function |
|
rotary tilling,mud mixing in paddy field |
|
Tilling Depth(mm) |
|
100~150 |
| Net weight (KG) |
|
≤55 |
|
Tilling Width(mm) |
|
1050 |
