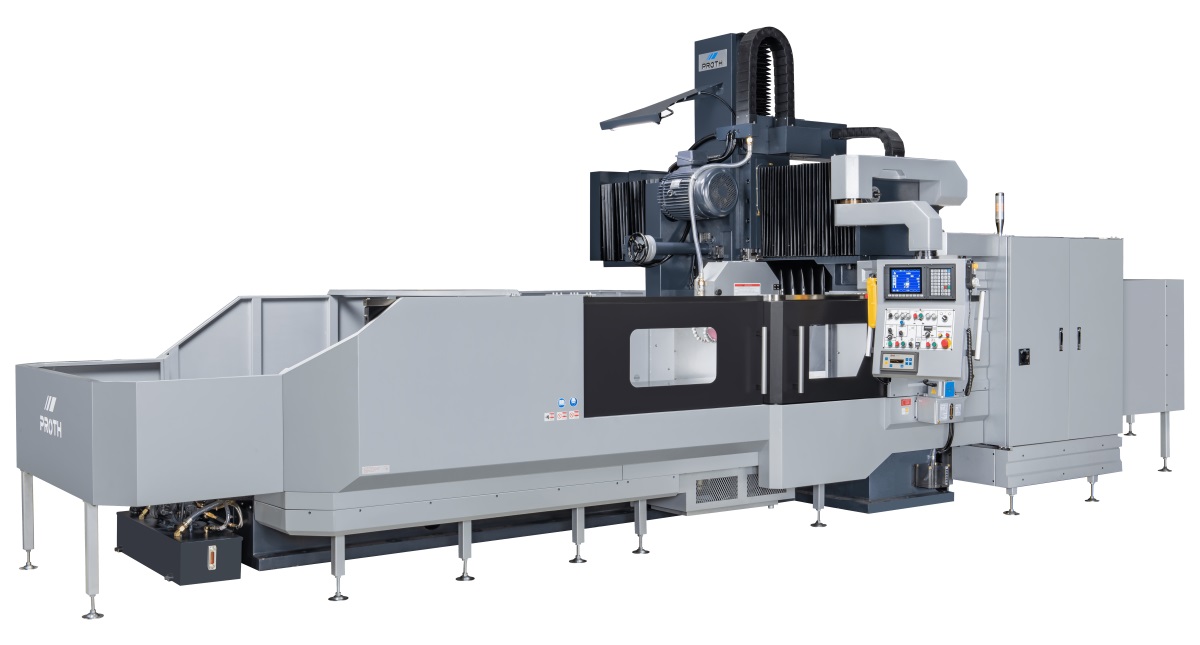

SPECIFICATION / MODELS
|
PSGP
|
1015AHR
|
1020AHR
|
1025AHR
|
1030AHR
|
1040AHR
|
1050AHR
|
1060AHR
|
|
General Capacity
|
Max. travel (cross x longitudinal)
|
1200x1650
mm
|
1200x2150
mm
|
1200x2650
mm
|
1200x3150
mm
|
1200x4150
mm
|
1200x5150
mm
|
1200x6150
mm
|
|
Wheel bottom to table(Vertical Head)
|
0-750mm
|
|
Spindle center height from table
|
approx. 1100mm
|
|
Max height from table top to bottom of standard wheel
|
845mm
|
|
Grinding surface of table
|
1000x1500
mm
|
1000x2000
mm
|
1000x2500
mm
|
1000x3000
mm
|
1000x4000
mm
|
1000x5000
mm
|
1000x6000
mm
|
|
Longitudinal Movement
|
Hydraulic table speed
|
2-25(1-25)m/min
|
|
Cross Movement
|
Clearance between the columns
|
1200mm
|
|
Intermittent cross feed-approx.(Electro-mechanical)
|
0.1-35mm/feed
|
|
Continuous cross feed-approx.(Electro-mechanical)
|
3000mm/min
|
|
Hand feed per revolution
|
5mm
|
10mm
|
|
Hand feed per division
|
0.02mm
|
0.05mm
|
|
Vertical Downfeed
|
Rapid traverse approx.(option)
|
250mm/min
|
|
Hand feed per division MPG
|
0.001mm
|
|
Grinding Wheel
|
Dimension(O.D x W x I.D)
|
510x100x203mm
|
|
Spindle speed(50/60Hz)
|
1150 r.p.m.
|
|
Motor
|
Horizontal head spindle motor
|
11(15,18.5)kW/15(20,25)HP
|
|
Vertical head spindle motor
|
7.5kW/10HP
|
|
Hydraulic motor
|
7.5kW/10HP
|
11kW/15HP
|
15kW/20HP
|
20.5kW/27.5HP
|
|
Weight
|
Net weight
|
10000kg
|
13500kg
|
17500kg
|
22000kg
|
36500kg
|
40000kg
|
44500kg
|
|
Gross weight
|
13000kg
|
17000kg
|
21500kg
|
26500kg
|
41000kg
|
45000kg
|
49500kg
|
|
MachineSize
|
Dimension (L x W x H) (m)
|
5.1x2.9x3.4
|
6.2x2.9x3.4
|
7.3x2.9x3.4
|
8.4x2.9x3.4
|
11.2x2.9x3.5
|
13.4x2.9x3.5
|
15.6x2.9x3.5
|
