Thông tin sản phẩm

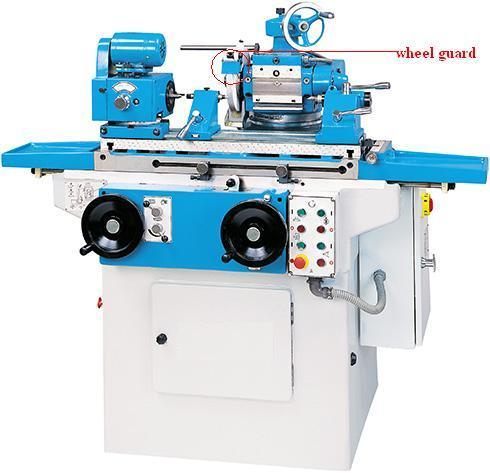

Model: 2M9125
Đường kính cánh tối đa trên bàn Φ250mm
Chiều dài phôi tối đa 500mm
Kích thước mài bề mặt (LxW) 300125mm
Kích thước mài dao cắt Φ200500mm
Trọng lượng tối đa của phôi 10kg
Tốc độ trục chính đầu làm việc 60,90,120,175,235,345 vòng / phút
Đầu xoay +900
Di chuyển tối đa của đầu bánh xe
Trượt dọc / ngang: 250 / 200mm
Tốc độ trục chính của đầu lăn 2500 vòng / phút
Tốc độ di chuyển lên xuống của đầu bánh xe 280mm / phút
Tổng công suất ; 3.105kw
Kích thước tổng thể: 1520x1220x1360mm
Kích thước vỏ; 2000x1520x1630mm
Tổng trọng lượng / Trọng lượng tịnh: 1780 / 1380kg
Model
14101
14102
Specification
2M9120A
2M9125
Max.swing diameter over table
Φ200mm
Φ250mm
Max.workpiece length
500mm
Size for surface Grinding(LxW)
300125mm
Size for cutter grinding
Φ200500mm
Max.weight of Workpiece
10kg
Workhead spindle speeds
110,200,300rpm
60,90,120,175,235,345rpm
Workhead swivel
+900
Max traverse of the wheelhead
Slide Vertical /Cross
200/200mm
250/200mm
Wheelhead spindle speeds
2500rpm
Speed of wheelhead up-down travel
280mm/min
Internalgrinding spindlle speed Longitudinal table travel hand control Table travers speed Max. swivel of table
13500rpm 500mm <7m/min +45-300
Total power Overall dimensions Size of case Gross Weight/ Net weight
2.905kw 1520x1133x1173mm 1820x1400x1630mm 1700/1285kg
3.105kw 1520x1220x1360mm 2000x1520x1630mm 1780/1380kg
