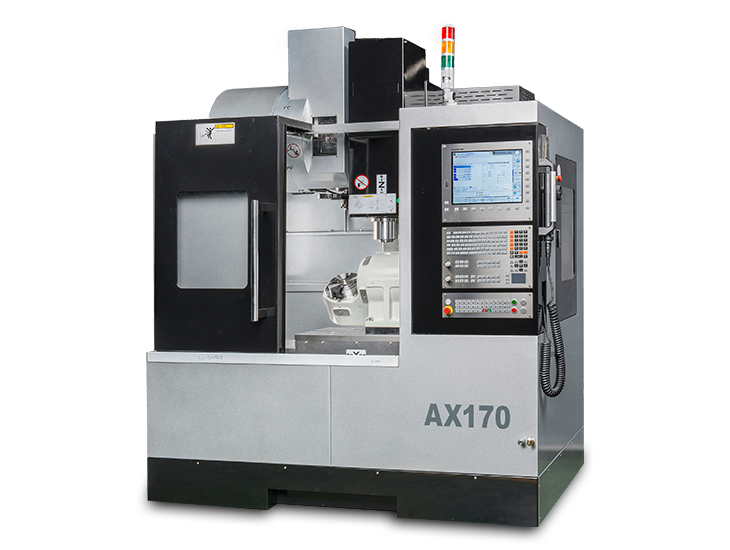

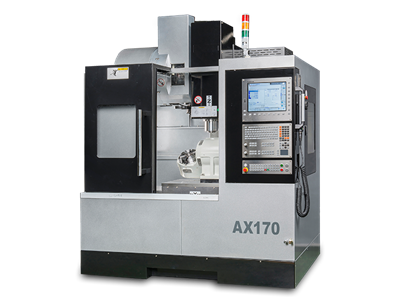

| TABLE |
|
| Table Size (mm) |
Ø170 |
| Travel Ranges (X/Y/Z mm) |
320 / 320 / 380 |
| Spindle Nose to Table Surface(mm) |
50~430 |
| Max. Table Load (kgs) |
50 |
| Max Workpiece Size (WxH mm) |
Ø210 x 160 |
| Diameter of Table Hole (mm) |
Ø40 |
| A-Axis, Title (deg) |
±120° |
| C-Axis, Rotary (deg) |
360° |
| A-Axis Max. Rapid Speed (rpm) |
60 |
| C-Axis Max. Rapid Speed (rpm) |
200 |
| T Slot Size |
14 x 90° x 4 |
| SPINDLE |
|
| Tool Shank & Pull Stud |
ISO40 (HSKA63) |
| Spindle Max Speed (rpm) |
15000 |
| Spindle Base Speed (rpm) |
2000 |
| Spindle Power (S1/max kW) |
3.7 / 9.5 |
| Spindle Torque (S1/max Nm) |
18 / 45 |
| Spindle Type |
Direct |
| Spindle Bearing Inner Diameter (mm) |
Ø60 |
| AXIS SERVO MOTOR |
|
| Rapid Feed Rate (XY/Z m/min) |
36 / 36 / 36 |
| Cutting Speed (X/Y/Z mm/min) |
20000 |
| X/Y/Z-axes Rated Torque (Nm) |
1.5 / 1.5 / 2.1 |
| A-Axis Rate Torque (Nm) D.D motor |
205 |
| C-Axis Rate Torque (Nm) D.D motor |
35 |
| AUTO TOOL CHANGER |
|
| ATC Type |
DISK |
| Cam Type |
ARM TYPE |
| Tool Selection (Bi-Direction) |
RANDOM |
| Tool Storage Capacity (PCs) |
20 |
| Max. Tool Diameter (mm) |
Ø75 |
| Max. Tool Length (mm) |
250 |
| Max. Tool Weight (Kgs) |
8 |
| MISCELLANEOUS |
|
| Positioning Accuracy X/Y/Z(mm) |
0.005 |
| A/C(arc-sec) |
5" / 5" |
| Repeatability Accuracy X/Y/Z(mm) |
0.003 |
| A/C(arc-sec) |
4"/4" |
| Floor Space (mm) |
1900 x 2110 x 2550 |
| Machine Weight (Kgs) |
2800 |
