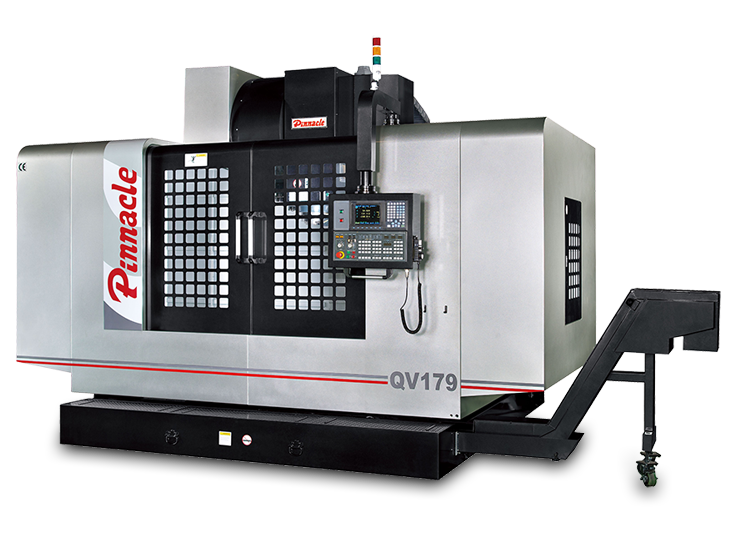

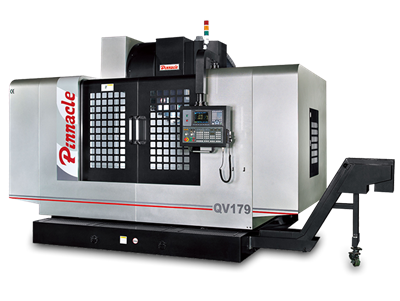

| TABLE |
|
|
|
| Table Size (mm) |
1700 x 850 |
2000 x 850 |
2200 x 850 |
| Travel Ranges (X x Y x Z mm) |
1500 / 900 / 850 |
1700 / 900 / x 850 |
2000 / 900 / x 850 |
| Max. Table Load (kgs) |
2000 |
2500 |
3000 |
| Spindle Nose to Table Surface (mm) |
150 ~ 1000 |
150 ~ 1000 |
150 ~ 1000 |
| T-slot (Width x Distance x Number mm) |
18 x 150 x 5 |
18 x 150 x 5 |
18 x 150 x 5 |
| SPINDLE |
|
|
| Tool Shank & Pull Stud |
ISO40 |
ISO50 |
| Spindle Inner Diameter (mm) |
Ø70 |
Ø100 |
| Spindle Center to Column (mm) |
950 |
950 |
| Spindle Speed (rpm) Belt |
40 - 8000(10000/12000) |
40 - 6000 (8000) |
| Spindle Speed (rpm) Gear |
L40 ~ 2000, H2001-8000 |
L40 ~ 1500, H1501 ~ 6000 |
| Draw Bar Force (kgf) |
950 |
2000 |
| Main Motor (con/30 min Kw) |
11 / 15 |
15 / 18.5 |
15 / 18.5 |
| FEED RATE |
|
|
|
| Rapid Feed Rate (X/Y/Z m/min) |
16 / 16 / 12 |
16 / 16 / 12 |
16 / 16 / 12 |
| Feed Rate (X/Y/Z/ mm/min) |
8000 |
8000 |
8000 |
| AXIS SERVO MOTOR |
|
|
|
| Mitsubishi (Kw) |
HG453 (4.5) |
HF703 (7.0) |
HF703 (7.0) |
| Fanuc (Kw) |
α22/3000i (4.0) |
α30/3000i (7.0) |
α30/3000i (7.0) |
| Siemens (Kw) |
IFK7101 (7.03) |
IFK7101 (7.03) |
IFK7101 (7.03) |
| Fagor (Kw) |
FKM 64.30 A |
FKM 64.30 A |
FKM 64.30 A |
| Heidenhain (Kw) |
QSY155F (56.03) |
QSY190D (9.6) |
QSY190D (9.6) |
| AUTO TOOL CHANGER |
ISO40 |
ISO50 |
| Mag Type |
DISK |
DISK / CHAIN |
| Cam Type |
DAUL ARM |
DAUL ARM |
| Tool Selection (Bi-direction) |
RANDOM |
RANDOM |
| Tool Storage Capacity (PCs) |
24 |
24 / 32 |
| Max. Tool Diameter (mm) |
Ø90 |
Ø105 / Ø127 |
| Max. Tool Length (mm), Weight (kgs) |
250 mm, 8 kgs |
350 mm, 15 kgs |
| MISCELLANEOUS |
|
|
|
| Air Requirement (Kg/cm2) |
6 |
6 |
6 |
| Voltage |
220V, 3Ph, 50 / 60Hz |
220V, 3Ph, 50 / 60Hz |
220V, 3Ph, 50 / 60Hz |
| Power Requirement (KVA) |
40 |
40 |
40 |
| Coolant Tank Capacity (L) |
700 |
700 |
700 |
| Machine Weight (Kgs) |
14000 |
15000 |
16000 |
| Machine Height (mm) |
3200 |
3200 |
3200 |
| Floor Space (L x W mm) |
3950 x 2900 |
4450 x 2900 |
5000 x 2900 |
