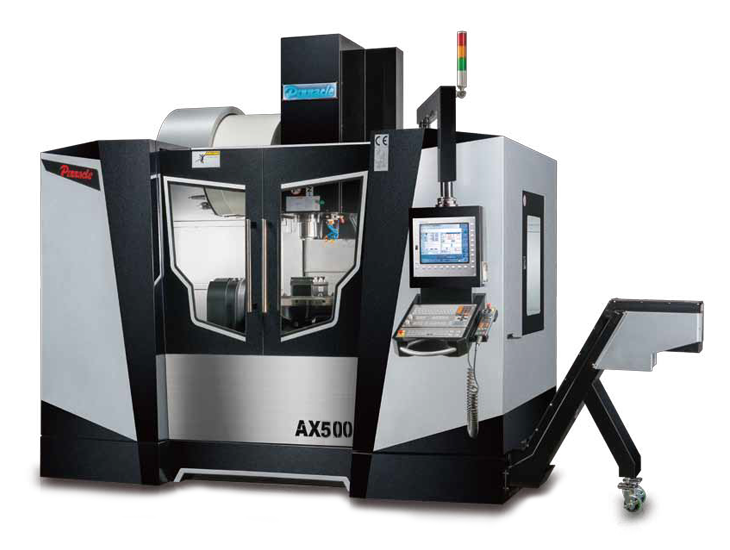

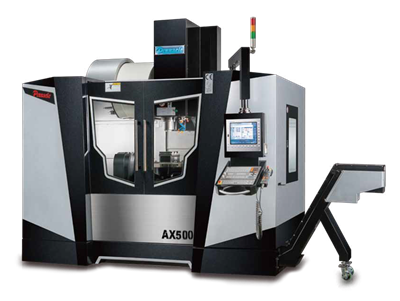

| MOVE TYPE |
Fix column |
| TABLE |
|
| TABLE SIZE & NUMBER (mm) |
Ø500 |
| TRAVEL RANGES (X/Y/Z mm) |
760 x 610 x 560 |
| SCREW SIZE (Size x Pitch mm) |
14 x 45° x 8 |
| MAX. TABLE LOAD (Kg) |
350 |
| MAX. WORKPIECE SIZE (WxH mm) |
Ø600 x 305 |
| DIAMETER OF TABLE HOLE (mm) |
Ø50 |
| SPINDLE NOSE TO TABLE SURFACE (mm) |
35~595 |
| A Axis, Tilt (deg)/(0.001°) |
220°(±110°) |
| C Axis, Rotary (deg)/(0.001°) |
360° |
| SPINDLE |
|
| DISTANCE BETWEEN COLUMN (mm) |
ISO40 |
| SPINDLE INNER DIAMETER (mm) |
Ø70 |
| SPINDLE SPEED (rpm) Belt |
- |
| SPINDLE SPEED (rpm) Direct drive |
10000 (12000/15000) |
| SPINDLE SPEED (rpm) Built-in |
20000 |
| MAIN MOTOR (con/30min kW) |
9 / 12 |
| THREE-AXIS MOTOR |
|
| RAPID FEED RATE (X/Y/Z m/min) |
30/30/24 |
| FEED RATE (X/Y/Z m/min) |
10 |
| FEED RATE (A/C rev/min) D.D motor |
30/90 |
| X-Axis Rated Torque (Nm) |
10 |
| YAxis Rated Torque(Nm) |
10 |
| Z-Axis Rated Torque(Nm) |
10 |
| A-Axis Rated Torque(Nm) D.D motor |
860 |
| C-Axis Rated Torque(Nm) D.D motor |
430 |
| ATC |
|
| ATC TYPE |
DISK(CHAIN) |
| CAM TYPE |
ARM |
| TOOL SELECTION (Bi-direction) |
RANDOM |
| TOOL STORAGE CAPACITY (PCs) |
24/30 (40) |
| MAX. TOOL DIAMETER (mm) |
Ø90 (Ø76) |
| MAX. TOOL LENGTH |
250 |
| MAX. TOOL WEIGHT |
8 |
| MISCELLANEOUS |
|
| AIR REQUIREMENT (Kg/cm2) |
6 |
| VOLTAGE |
380 |
| POWER REQUIREMENT (KVA) |
40 |
| COOLANT TANK CAPACITY (L) |
300 |
| MACHINE WEIGHT (KGs) |
7100 |
| MACHINE HEIGHT (mm) |
3280 |
| FLOOR SPACE (LxW mm) |
3100 x 2390 |
| PACKING SIZE (LxWxH mm) |
3150 x 2230 x 2560 |
