| Description |
Unit |

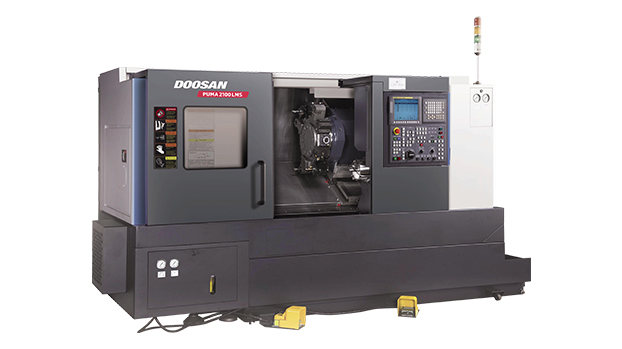

PUMA
2100/L |
| Capacity |
Swing over
bed |
mm (inch) |
780 (30.7) |
Swing over front
door |
mm (inch) |
680 (26.8) |
Swing over
saddle |
mm (inch) |
630 (24.8) |
| Recom. Turning diameter |
mm (inch) |
210 (8.3) |
Max. turning
diameter |
mm (inch) |
480 (18.9) |
Max. turning
length |
mm (inch) |
520 / 760 (20.5 / 29.9) |
Bar working
diameter |
mm (inch) |
65 (2.6) |
| Travels |
Travel
distance |
X-axis |
mm (inch) |
260 [20+240]
(10.2 [0.8+9.4]) |
| Z-axis |
mm (inch) |
590 / 830 (23.2 / 32.7) |
| Y-axis |
mm (inch) |
– |
| B-axis |
mm (inch) |
– |
| Feedrates |
Rapid
traverse |
X-axis |
m/min (ipm) |
30 (1181.1) |
| Z-axis |
m/min (ipm) |
30 (1181.1) |
| Y-axis |
m/min (ipm) |
– |
| B-axis |
m/min (ipm) |
– |
| Main Spindle |
Spindle speed
(Belt Type) |
r/min |
4500 |
Spindle speed
(Built-in Type) |
r/min |
– |
Spindle
nose |
|
ASA A2#6 |
| Spindle bearing diameter (Front) |
mm (inch) |
120 (4.7) |
| Spindle through hole diameter |
mm (inch) |
76 (3.0) |
| Min. spindle indexing angle (C-axis) |
deg |
– |
| Turret |
No. of tool
stations |
st |
12 |
OD tool
size |
mm (inch) |
25 (1.0) |
| Boring bar diameter |
mm (inch) |
50 (2.0) |
Indexing time
(1st swivel time) |
s |
0.15 |
| Rotary tool spindle speed |
r/min |
– |
| Tail stock |
Quill diameter |
mm (inch) |
80 (3.1) |
Quill bore taper
(Live) |
|
MT#4 |
| Compressed air supply |
mm (inch) |
80 (3.1) |
| Sub-spindle |
Spindle speed
(Belt [Built-in]) |
r/min |
– |
| Spindle nose |
|
– |
| Spindle bearing diameter (Front) |
mm (inch) |
– |
| Spindle through hole diameter |
mm (inch) |
– |
| Min. spindle indexing angle (C-axis) |
deg |
– |
| Motors |
Main spindle
motor |
kW (Hp) |
18.5 / 15 (24.8 / 20.1) |
Sub spindle
motor |
kW (Hp) |
– |
Rotary tool
spindle motor |
kW (Hp) |
– |
| Coolant pump motor |
kW (Hp) |
0.4 (0.5) |
| Power source |
Electric power supply (Rated capacity) |
kVA |
35.63 |
| Machine size |
Machine height |
mm (inch) |
1900 (74.8) |
| Machine dimension |
length |
mm (inch) |
3310 / 3530 (130.3 / 139.0) |
| width |
mm (inch) |
1863 (73.3) |
| Machine weight |
kg (lb) |
4850 / 5350
(10692.3 / 11794.6) |
