| ITEM |

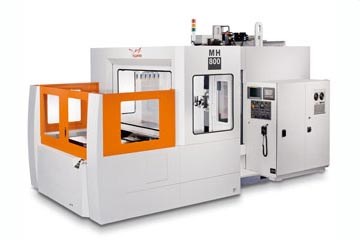

MH-800 |
| Capacity |
Dimensions |
800 × 800 (31.5 × 31.5) |
| Bolt hole |
M16 × 2 |
| Max. loading capacity |
1200 kg (Uniform distribution) (2640 lbs) |
| B minimum indexing (degree) |
STD:1°; OPT: 0.001° |
| Index repeatability |
± 4” |
| Pallet capacity |
2 |
| Travel Range |
Max. travel range of X/Y/Z-axis |
1000 / 800 / 750 (39.4 / 31.5 / 29.5) |
| Distance from spindle nose to table center |
200-950 (7.9-37.4) |
| Distance from spindle center to table surface |
50-850 (2.0-33.5) |
| Spindle |
Spindle taper |
ISO No. 50 |
| Spindle nose outer diameter |
Ø 100 (Ø 3.9) |
| Spindle speed |
45-4500 rpm (3-step gear) |
| Feedrate |
Cutting feedrate of X/Y/Z-axi |
1 -5000 mm /min (0.04-197 ipm) |
| Rapid traverse speed of X/Y/Z-axis |
20 m /min (787 ipm) |
| Minimum setting unit of X/Y/Z-axis |
0.001 |
| Feedback element |
Optical scale |
| Tool |
Tool capacity |
STD: 60 pcs; OPT: 80 pcs |
| Tool selection |
Shortest path |
| Max. adjacent tool diameter × length |
Ø 140 × 450 Max. tool diameter Ø 230 |
| Max. tool weight |
20 kg (44 lbs) |
| Tool shank type |
BT50. CAT50. |
| Drive Motor |
Spindle motor |
15/18.5 kW (20 / 24.8 HP) |
| Servo motor of X/Y/Z/B-axis |
4 / 4 / 7 / 1.6 kW (5.4 / 5.4 / 9.4 / 2.1 HP) |
| Spindle recirculating lubrication motor |
370 W |
| Centralized lubrication system |
12 W |
| Hydraulic motor |
5.5 kW (7.4 HP) |
| Coolant motor (for tools/chips) |
0.75 / 1.5 kW |
| Chip conveyor motor |
0.1 kW × 2 (1/8HP × 2) |
| ATC motor |
2.2 kW |
| Chain type chip conveyor + Chip bucket |
Hydraulic |
| Accuracy |
Positioning |
±0.004 |
| Repeatability |
±0.003 |
| Miscellaneous |
T-T (sec) |
8 |
| P-P (sec) pallet to pallet |
18 |
| Outline dimensions (W × H × D) w/80-tool |
6788 × 2950 × 2950 (267 × 116 × 116) |
| Packing size (W × H × D) w/80-tool |
7820 × 3360 × 3550 (308 × 132 × 140) |
| Net weight (approx.) w/80-tool |
19410 / 3250 kg (42702 / 7150 lbs) |
| Gross weight (approx.) w/80-tool |
23920 / 3550 kg (52624 / 7810 lbs) |
