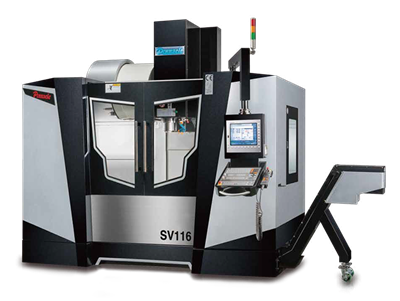

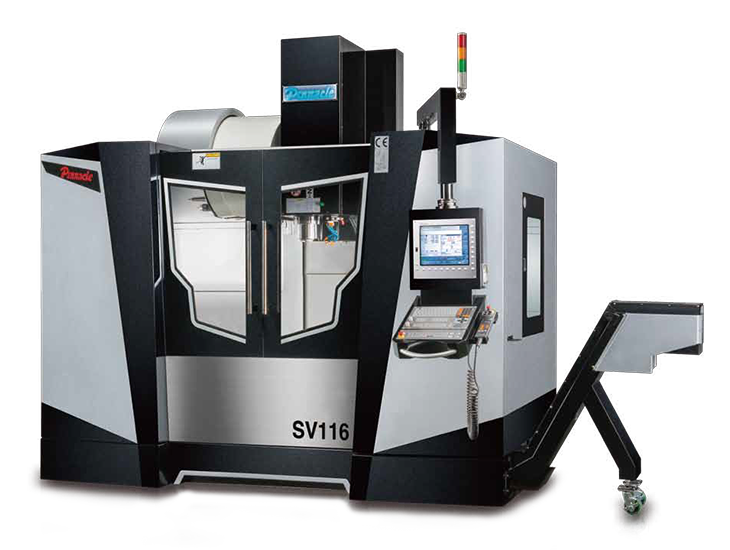

| TABLE |
|
|
| Table Size (mm) |
1300 x 610 |
1400 x 610 |
| Travel Ranges (X x Y x Z mm) |
1140 x 610 x 610 |
1300 x 610 x 610 |
| Max. Table Load (kgs) |
850 |
850 |
| Spindle Nose to Table Surface (mm) |
110 ~ 720 |
110 ~ 720 |
| T-slot (Width x Distance x Number mm) |
18 x 125 x 5 |
18 x 125 x 5 |
| SPINDLE |
|
|
| Distance Between Column (mm) |
BT-40 |
BT-50 |
| Spindle Inner Diameter (mm) |
Ø70 |
Ø80 |
| Spindle Center to Column (mm) |
675 |
675 |
| Spindle Speed (rpm) Belt |
60 ~ 8000(10000/12000) |
40 ~ 8000 |
| Spindle Speed (rpm) Gear |
L40~1750, H1751~8000 |
L40~1500, H1501~6000 |
| Spindle Speed (rpm) Direct-Drive |
10000 / 12000 / 15000 |
10000 |
| Draw Bar Force (kgf) |
950 |
2000 |
| Main Motor (con/30 min Kw) |
7.5 / 11 |
11 / 15 |
| FEED RATE |
|
|
| Rapid Feed Rate (X/Y/Z m/min) |
20 / 20 / 20 |
20 / 20 / 20 |
| Feed Rate (X/Y/Z/ mm/min) |
10000 |
10000 |
| AXIS SERVOMOTOR |
|
|
| Mitsubishi X/Y/Z (Kw) |
HF353 (3.5) |
HF353 (3.5) |
| Fanuc (Kw) |
β22/3000is 3.0 (α12i/3000i 3.0) |
| Siemens (Kw) |
1FK7 063 (2.9) |
1FK7 063 (2.9) |
| Fagor (Kw) |
FKM64.30A |
FKM64.30A |
| Heidenhain (Kw) |
QSY155B (2.47) |
QSY155B (2.47) |
| AUTO TOOL CHANGER |
ISO40 |
ISO50 |
| ATC Type |
DISK |
| Cam Type |
DAUL ARM |
| Tool Selection (Bi-direction) |
RANDOM |
| Tool Storage Capacity (PCs) |
24 |
24 |
| Max. Tool Diameter (mm) |
Ø90 |
Ø105 |
| Max. Tool Length (mm), Weight (kgs) |
250, 8 |
300, 15 |
| MISCELLANEOUS |
|
|
| Air Requirement (Kg/cm2) |
6 |
6 |
| Voltage |
220 |
220 |
| Power Requirement (KVA) |
20 |
20 |
| Coolant Tank Capacity (L) |
300 |
300 |
| Machine Weight (Kgs) |
6500 |
6800 |
| Machine Height (mm) |
2950 |
2950 |
| Floor Space (L x W mm) |
3100 x 2200 |
3400 x 2200 |
| Packing Size (L x W x H mm) |
3150 x 2230 x 2350 |
3450 x 2230 x 2350 |
