| TABLE |
|
| Table Size (mm) |
660x410 |
910x510 |
| Travel Rangers (X/Y/Z mm) |
510/410/510 |
810/510/510 |
| Max. Table Load (Kgs) |
200 |
300 |
| Spindle Nose to Table Surface (mm) |
100~610 |
100~610 |
| T-slot (Width x Distance x Number mm) |
14x125x3 |
14x125x4 |
| SPINDLE |

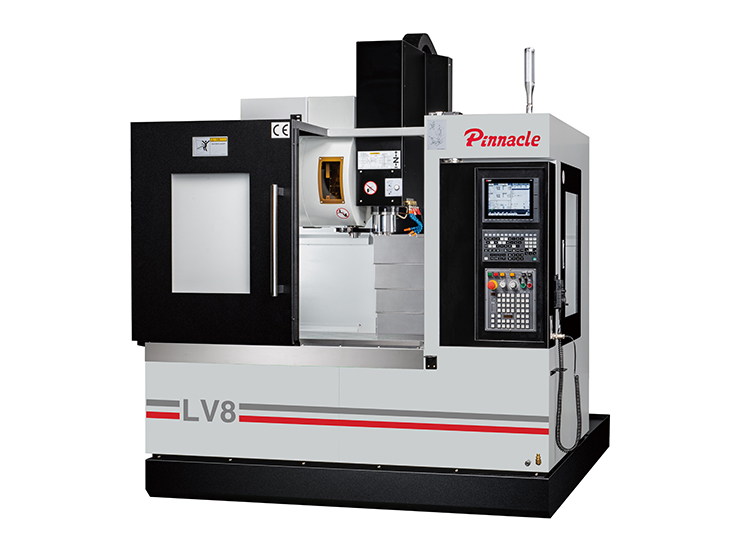

*LV5/LV8 both are available |
| Tool Shank & Pull Stud |
ISO30 |
ISO40 |
| Spindle Inner Diameter (mm) |
直結Ø45 |
直結Ø60 |
| Spindle Center to Column (mm) |
462 |
562 |
| Spindle Speed (rpm) Direct-Drive |
12000 (15000) |
12000 (15000) |
| Spindle Speed (rpm) Built-in |
24000 (36000/HSK-E40) |
- |
| Draw Bar Force (Kgf) |
300 |
600 |
| Main Motor (Con. / 30min. Kw) |
3.7 / 5.5 |
| AXIS SERVO MOTOR |
|
| Rapid Feed Rate (X/Y/Z m/min) |
36 / 36 / 36 |
| Feed Rate (X/Y/Z m/min) |
20000 |
| Power X/Y/Z (Kw) Mitsubishi |
1.5 / 1.5 / 2.0 |
1.5 / 1.5 / 2.0 |
| Torque X/Y/Z (Nm) Mitsubishi |
4.8 / 4.8 / 6.4 |
4.8 / 4.8 / 6.4 |
| ATC |
|
| ATC Type |
Disk |
| Tool Selection (Bi-direction) |
Arm Type |
| Tool Storage Capacity (Pcs) |
20 |
| Max. Tool Diameter (mm) |
Ø75 |
| Max. Tool Length (mm) |
150 |
200 |
| Max. Tool Weight (Kgs) |
4 |
7 |
| MISCELLANEOUS |
|
| Air Requirement (Kg/cm2) |
6 |
| Voltage (V) |
220 |
| Power Requirement (KVA) |
15 |
| Coolant Tank Capacity (L) |
150 |
| Machine Weight (Kgs) |
2800 |
3000 |
| Machine Height (mm) |
2815 |
| Floor Space (LxW mm) |
1900 x 2250 |
2200 x 2380 |
