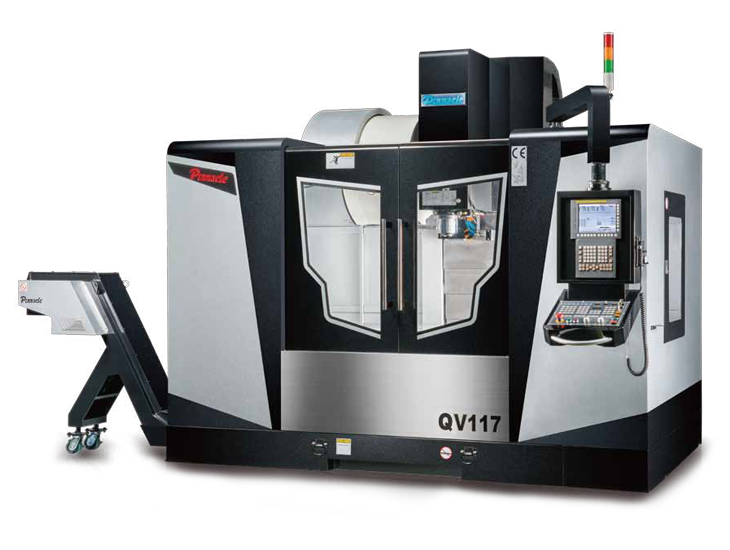

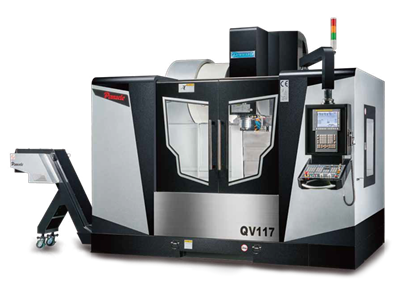

| TABLE |
|
|
|
| Table Size (mm) |
1300 x 700 |
1500 x 700 |
1600 x 700 |
| Travel Ranges (X x Y x Z mm) |
1140 / 710 / 610 |
1300 / 710 / 610 |
1400 / 710 / 610 |
| Max. Table Load (kgs) |
1000 |
1200 |
1500 |
| SPINDLE NOSE TO TABLE SURFACE (mm) |
110 ~ 720 |
110 ~ 720 |
110 ~ 720 |
| T-slot (Width x Distance x Number mm) |
18 x 125 x 5 |
18 x 125 x 5 |
18 x 125 x 5 |
| SPINDLE |
|
|
| Tool Shank & Pull Stud |
ISO40 |
ISO50 |
| Spindle Inner Diameter (mm) |
Ø70 |
Ø100 |
| Spindle Center to Column (mm) |
760 |
760 |
| Spindle Speed (rpm) Belt |
40 - 8000(10000/12000) |
40 - 6000 (8000) |
| Spindle Speed (rpm) Gear |
L40 ~ 1750, H1751 ~ 8000 |
L40 ~ 1500, H1501 ~ 6000 |
| Spindle Speed (rpm) Direct-Drive |
10000 / 12000 / 15000 |
10000 |
| Draw Bar Force (kgf) |
950 |
2000 |
| Main Motor (con/30 min Kw) |
7.5 / 11 |
11 / 15 |
| FEED RATE |
|
|
|
| Rapid Feed Rate (X/Y/Z m/min) |
20 / 20 / 16 |
20 / 20 / 16 |
20 / 20 / 16 |
| Feed Rate (X/Y/Z/ mm/min) |
10000 |
10000 |
10000 |
| AXIS SERVO MOTOR |
|
|
|
| Mitsubishi (Kw) |
HG354 (3.5) |
HG453 (4.5) |
HG453 (4.5) |
| Fanuc (Kw) |
β22/3000is 3.0 (α12i/3000i 3.0) |
| Siemens (Kw) |
1FK7083 (4.17) |
1FK7083 (4.17) |
1FK7083 (4.17) |
| Fagor (Kw) |
FKM64.30A |
FKM64.30A |
FKM64.30A |
| Heidenhain (Kw) |
QSY155D (5.68) |
QSY155D (5.68) |
QSY155D (5.68) |
| AUTO TOOL CHANGER |
ISO40 |
ISO50 |
| Mag Type |
DISK |
DISK / CHAIN |
| Cam Type |
DAUL ARM |
DAUL ARM |
| Tool Selection (Bi-direction) |
RANDOM |
RANDOM |
| Tool Storage Capacity (PCs) |
24 |
24 / 32 |
| Max. Tool Diameter (mm) |
Ø90 |
Ø105 / Ø127 |
| Max. Tool Length (mm), Weight (kgs) |
250, 8 |
350, 15 |
| MISCELLANEOUS |
|
|
|
| Air Requirement (Kg/cm²) |
6 |
6 |
6 |
| Voltage |
220V, 3Ph, 50 / 60Hz |
220V, 3Ph, 50 / 60Hz |
220V, 3Ph, 50 / 60Hz |
| Power Requirement (KVA) |
30 |
30 |
30 |
| Coolant Tank Capacity (L) |
350 |
350 |
350 |
| Machine Weight (Kgs) |
9000 |
10000 |
11000 |
| Machine Height (mm) |
3000 |
3000 |
3000 |
| Floor Space (L x W mm) |
3250 × 3235 |
3490 × 3235 |
3890 × 3235
|
