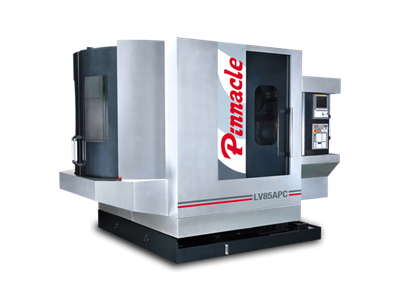

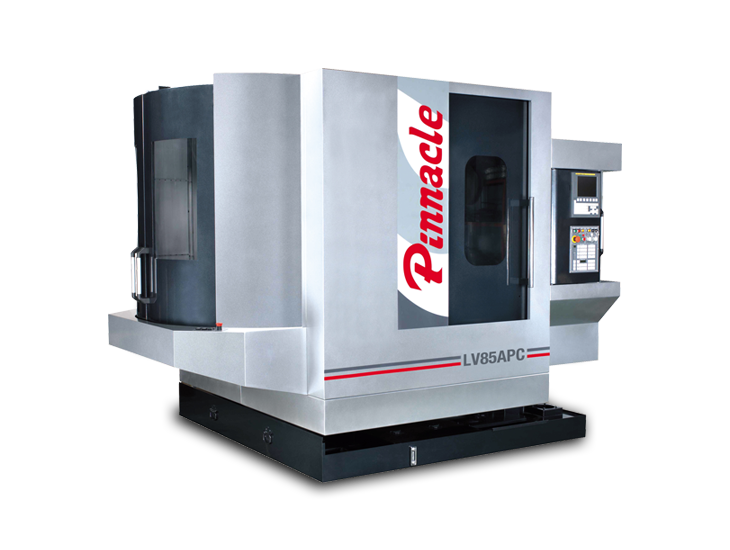

| TABLE |
|
| Table Size (mm) |
850 x 500 |
| Travel Ranges (X x Y x Z mm) |
850 / 520 / 560 |
| Max. Table Load (kgs) |
300 KG one-sided |
| Spindle Nose to Table Surface (mm) |
100 ~ 660 |
| T-Slot (WxNxP mm) |
18 x 5 x 100 |
| Pallet Change Time (sec) |
9 |
| Pallet Exchange Method |
+180°Rotation |
| Locking Strength |
3760kg@60kg/cm2 |
| SPINDLE |
|
| Tool Shank & Pull Stud |
ISO40 |
| Spindle Inner Diameter (mm) |
Ø60 (Ø70) |
| Spindle Center to Column (mm) |
620 |
| Spindle Speed (rpm) Belt |
60-8000(10000) |
| Spindle Speed (rpm) Gear |
L40-2000, H2001-8000 |
| Spindle Speed (rpm) Direct drive |
12000(15000) |
| Draw Bar Force (kgf) |
700 (950) |
| Main Motor (con/30 min Kw) |
5.5 / 7.5 |
| FEED RATE |
|
| Rapid Feed Rate (X/Y/Z m/min) |
32 / 32 /32 |
| Feed Rate (X/Y/Z/ mm/min) |
10000 |
| AXIS SERVOMOTOR |
|
| MitsubishikW |
HF354 (3.5) |
| Fanuc kW |
β22/20000 is 2.5 or (α12/3000 i 3.0) |
| Siemens kW |
1FK7 063 2.9 |
| Fagor kW |
FXM53.3 3.1 |
| Heidenhain kW |
QSY155B 2.47 |
| AUTO TOOL CHANGER |
|
| MAG TYPE |
DISK / CHAIN |
| Cam Type |
DAUL ARM |
| Tool Selection (Bi-direction) |
RANDOM |
| Tool Storage Capacity (PCs) |
24/30T(Opt.) |
| Max. Tool Diameter (mm) |
Ø90/ Ø76 (Opt.) |
| Max. Tool Length ,WEIGHT |
250 mm, 8 KGs |
| MISCELLANEOUS |
|
| Air Requirement (Kg/cm2) |
6 |
| Voltage |
220 |
| Power Requirement (KVA) |
20 |
| Coolant Tank Capacity (L) |
200 |
| Machine Weight (Kgs) |
6800 |
| Floor Space (L x W mm) |
3300 x 4000 x 2900 |
| Packing Size (L x W x H mm) |
4050 x 2300 x 2540 |
