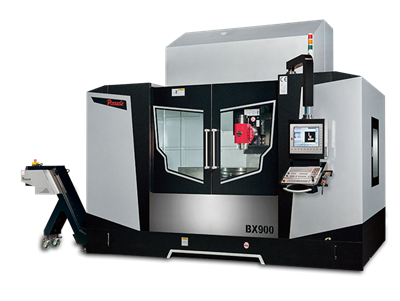

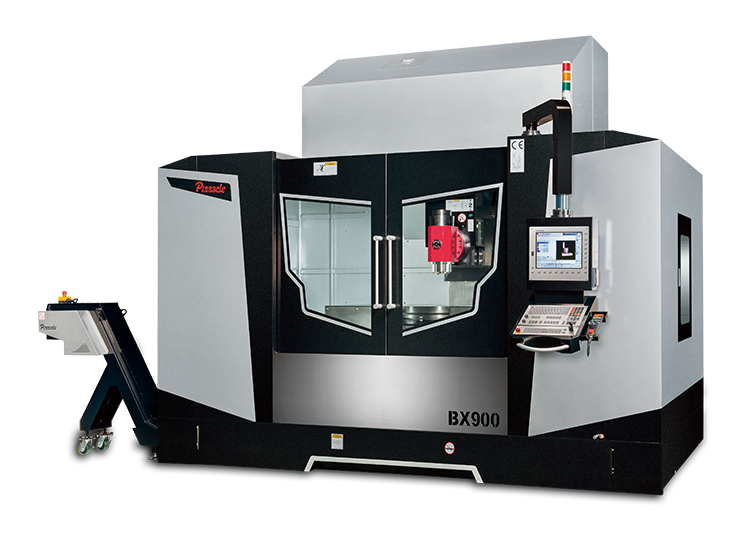

| TABLE |
|
|
|
| TABLE SIZE (mm) |
1700x850 |
1700x850 |
1700x850 |
| TRAVEL RANGES (X/Y mm) |
1500/900 |
1500/900 |
1500/900 |
| TRAVEL RANGES (Z mm) |
立式1000 / 臥式1100 |
立式1000 / 臥式1100 |
立式1000 / 臥式1100 |
| MAX. TABLE LOAD (Kg) |
1200 |
1200 |
1200 |
| SPINDLE NOSE TO TABLE SURFACE (VERTICAL) |
115~1115 |
115~1115 |
100~1100 |
| SPINDLE CENTER TO TABLE SURFACE (HORIZONTAL) |
255~1355 |
255~1355 |
255~1355 |
| T-SLOT (W x D x N mm) |
18x150x5 |
18x150x5 |
18x150x5 |
| BUILT-IN SPINDLE |
|
|
|
| SPINDLE TAPER |
DIN40 |
DIN40 |
HSK63T |
| BEARING INNER DIAMETER (mm) |
Ø 70 |
Ø 70 |
Ø 70 |
| SPINDLE CENTER TO COLUMN (mm) |
950 |
950 |
970 |
| SPINDLE SPEED (rpm) |
15000 |
15000 |
15000 |
| DRAW BAR FORCE (Kgf) |
900±100 |
900±100 |
1800±100 |
| MAIN MOTOR (con /S6 60% kW) |
15/19.4 |
15/19.4 |
19/23 |
| MOTOR TYPE |
E+A mW16/17-8 |
E+A mW16/17-8 |
ATE AC180/150/8 |
| MOTOR TORQUE (con/max Nm) |
71.6/172 |
71.6/172 |
93/239 |
| SWING HEAD |
|
|
|
| DRIVER TYPE |
WORM GEAR |
Direct drive |
Direct drive |
| REDUCTION RATIO |
1：120 |
- |
- |
| TILTING RANGE (deg) |
±120° |
±120° |
±120° |
| ROTATION SPEED (rpm) |
16.6 |
50 |
50 |
| MIN. INDEX (deg) |
0.001 |
0.001 |
0.001 |
| CLAMP TORQUE (Nm) |
1765 |
2950 |
2950 |
| WORKING TORGE (Nm) |
765 |
689 |
689 |
| SWING HEAD |
|
|
|
| TYPE |
EMBEDDED |
EMBEDDED |
EMBEDDED |
| DRIVER TYPE |
Direct drive |
Direct drive |
Direct drive |
| TABLE DIAMETER (mm) |
Ø800 |
Ø800 |
Ø800 |
| CENTER BORE DIAMETER (mm) |
Ø60 |
Ø60 |
Ø60 |
| ROTATION SPEED (rpm) |
50 |
50 |
50(Mill) / 800(Turn) |
| MIN. INDEX (deg) |
0.001 |
0.001 |
0.001 |
| MAX. TABLE LOAD (Kg) |
1200 |
1200 |
800(Mill) / 500(Turn) |
| AXIS SERVOMOTORS |
|
|
|
| RAPID FEED RATE (X/Y/Z m/min) |
20/20/16 |
20/20/16 |
20/20/16 |
| FEED RATE (X/Y/Z mm/min) |
10000 |
10000 |
10000 |
| X/Y/Z-Axis Rated Torque (Nm) |
30.6/30.6/30.6 |
30.6/30.6/30.6 |
30.6/30.6/30.6 |
| B-Axis Rated Torque (Nm) |
11 |
689 |
689 |
| C-Axis Rated Torque (Nm) |
533 |
533 |
533 |
| TOOL MAGAZINE |
|
|
|
| ATC TYPE |
PLATE |
PLATE |
PLATE |
| CAM TYPE |
DAUL ARM |
DAUL ARM |
DAUL ARM |
| TOOL SELECTION (Bi-direction) |
RANDOM |
RANDOM |
RANDOM |
| TOOL STORAGE CAPACITY (PCs) |
30(60) |
30(60) |
30(60) |
| MAX. TOOL DIAMETER (mm) |
Ø75 |
Ø75 |
Ø75 |
| MAX. TOOL LENGTH |
250 |
250 |
250 |
| MAX. TOOL WEIGHT |
8 |
8 |
8 |
| MISCELLANEOUS |
|
|
|
| Positioning X/Y/Z linear axis(mm) |
0.005 |
0.005 |
0.005 |
| B/C rotary axis(sec) |
14"/10" |
10"/10" |
10"/10" |
| Repeatability X/Y/Z linear axis(mm) |
0.003 |
0.003 |
0.003 |
| B/C rotary axis(sec) |
8"/6" |
6"/6" |
6"/6" |
| OTHERS |
|
|
|
| AIR REQUIREMENT (Kg/cm2) |
6 |
6 |
6 |
| VOLTAGE |
380 |
380 |
380 |
| POWER REQUIREMENT (KVA) |
50 |
50 |
50 |
| COOLANT TANK CAPACITY (L) |
700 |
700 |
700 |
| MACHINE WEIGHT (KGs) |
15000 |
15000 |
15000 |
| MACHINE HEIGHT (mm) |
3450 |
3450 |
3450 |
| FLOOR SPACE (LxW mm) |
4450x4340 |
4450x4340 |
4450x4340 |
| PACKING SIZE (LxWxH mm) |
4300x3260x4030 |
4300x3260x4030 |
4300x3260x4030 |
