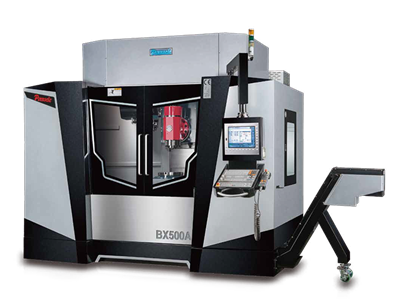

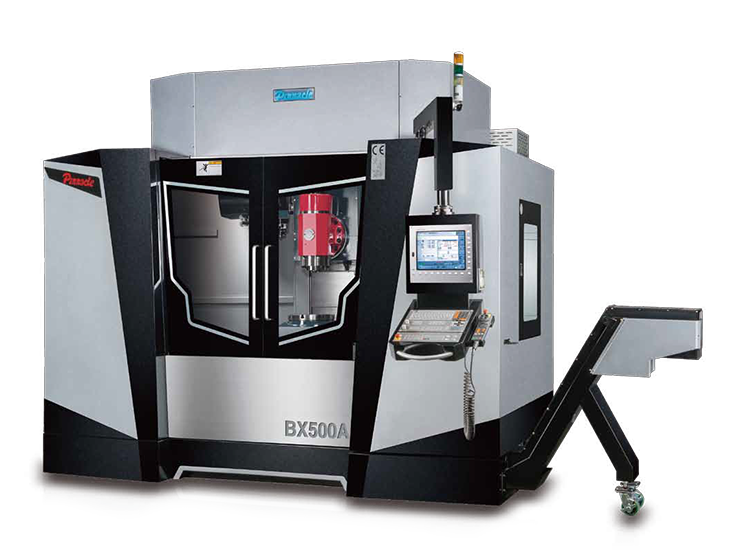

| TABLE |
|
|
|
| Table Size (mm) |
1300 x 610 |
1450 x 610 |
1600 x 700 |
| Travel Ranges (X mm) |
1140 |
1300 |
1400 |
| Travel Ranges ( Y mm) |
610 |
610 |
710 |
| Travel Ranges ( Z mm) |
810 |
810 |
810 |
| Max. Table Load (kgs) |
850 |
850 |
1000 |
| Spindle Nose to Table Surface (Vertical)(mm) |
100 ~ 910 |
100 ~ 910 |
180 ~ 990 |
| Spindle Center to Table Surface (Horizontal)(mm) |
355~1165 |
355~1165 |
420~1230 |
| T-slot (Width x Distance x Number mm) |
18 x 125 x 5 |
18 x 125 x 5 |
18 x 125 x 5 |
| BUILT-IN SPINDLE |
|
|
|
| Spindle Taper |
DIN40 (HSKA63) |
DIN40 (HSKA63) |
DIN40 (HSKA63) |
| Bearing Inner Diameter (mm) |
Ø70 |
Ø70 |
Ø70 |
| Spindle Center to Column (mm) |
675 |
675 |
760 |
| Spindle Speed (rpm) |
15000 |
15000 |
15000 |
| Draw Bar Force (kgf) |
800 ± 100 |
800 ± 100 |
900 ± 100 |
| Main Motor (con/ 30min kw) |
15 / 18 |
15 / 18 |
15 / 19.4 |
| Moto Type |
INDRAMAT
IMB 160F~4B |
INDRAMAT
IMB 160F~4B |
E+A
mW16/17-8 |
| Motor Torque (con/ max Nw) |
48 / 120 |
48 / 120 |
71.6 / 172 |
| SWING HEAD |
|
|
|
| Driver Type |
WORM GEAR |
WORM GEAR |
WORM GEAR |
| Reduction Ratio |
1 : 72 |
1 : 72 |
1 : 120 |
| Tilting Range (deg) |
± 120° |
± 120° |
± 120° |
| Max. Speed (rpm) |
25 |
25 |
16.6 |
| Max. Unit |
0.001 |
0.001 |
0.001 |
| Clamp Torque (Nm) |
1157 |
1157 |
1765 |
| Working Torge (Nm) |
764 |
764 |
765 |
| ROTARY TABLE |
|
|
|
| Driver Type |
SEPARATED |
SEPARATED |
SEPARATED |
| Type |
WORM GEAR |
WORM GEAR |
WORM GEAR |
| Table Diameter (mm) |
Ø 320 |
Ø 500 |
Ø 630 |
| Center Bore Diameter (mm) |
Ø 70 |
Ø 60 |
Ø 75 |
| Rotation Speed(rpm) |
22.2 |
11.1 |
11.1 |
| Min. lndex |
0.001 |
0.001 |
0.001 |
| Max. Table Load (kg) |
350 |
500 |
800 |
| AXIS SERVO MOTOR |
|
|
|
| Rapid Feed Rate X/Y/Z m/(min) |
36 / 36 / 24 |
36 / 36 / 24 |
36 / 36 / 24 |
| Feed Rate (X / Y / Z mm/min) |
10000 |
10000 |
10000 |
| Rated Torque (X / Y /Z Nm) |
11 / 11 / 11 |
11 / 11 / 11 |
18.1 / 18.1 / 18.1 |
| B-Axis Rated Torque (Nm) |
11 |
11 |
11 |
| C-Axis Rated Torque (Nm) |
11 |
11 |
11 |
| TOOL MAGAZINE |
|
|
|
| ATC Type |
PLATE |
PLATE |
PLATE |
| CAM Type |
DAUL ARM |
DAUL ARM |
DAUL ARM |
| Tool Selection (Bi-direction) |
RANDOM |
RANDOM |
RANDOM |
| Tool Storage Capacity (pcs) |
30 (40, 60) |
30 (40, 60) |
30 (40, 60) |
| Max. Tool Diameter (mm) |
Ø75 |
Ø75 |
Ø75 |
| Max. Tool Length |
250 |
250 |
250 |
| Max. Tool Weight |
8 |
8 |
8 |
| ACCURACY |
|
|
|
| Positioning XYZ linear axis (mm) |
0.005 |
0.005 |
0.005 |
| BC rotary (sec) |
14"/14" |
14"/14" |
14"/14" |
| Repeatability XYZ linear axis (mm) |
0.003 |
0.003 |
0.003 |
| BC rotary (sec) |
8"/8" |
8"/8" |
8"/8" |
| MISCELLANEOUS |
|
|
|
| Air Requirement (kg/cm²) |
6 |
6 |
6 |
| Voltage |
380 |
380 |
380 |
| Power Requirement (KVA) |
40 |
40 |
40 |
| Coolant Tank Capacity (L) |
300 |
300 |
450 |
| Machine Weight (kgs) |
6500 |
6800 |
11000 |
| Machine Height (mm) |
3100 |
3100 |
3200 |
| Floor Space (L x W mm) |
3100 x 2230 |
3400 x 2230 |
3890 x 3180 |
| Packing Size (L x W x H mm) |
3150 x 2300 x 2550 |
3450 x 2300 x 2550 |
3230 x 2300 x 2560 |
