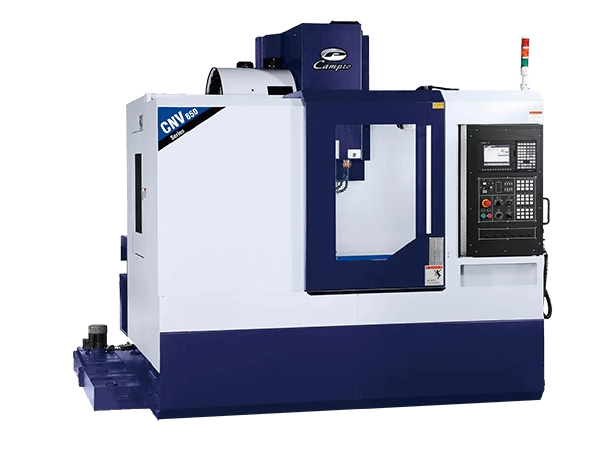

| Travel |
| X axis travel |
mm(in) |
1,280(50.3") |
| Y axis travel |
mm(in) |
650(25.5") |
| Z axis travel |
mm(in) |
630(24.8") |
| Distance from spindle nose to table surface |
mm(in) |
100~730(3.9" ~ 28.7") |
| Distance from spindle center to column |
mm(in) |
722(28.4") |
| Table |
| Table dimension |
mm(in) |
1,380 × 650(54.3" x 25.5") |
| Max. loading weight |
kg(lb) |
1,200(2,645) |
| T-slots (W x No. x P) |
mm(in) |
18 x 5 x 100(0.7" x 5 x 3.9") |
| Spindle |
| Spindle speed(OPT) |
rpm |
10,000(12,000 / 15,000) |
| Spindle motor |
kW(HP) |
11 / 15(20HP) |
| Spindle taper |
type |
7/24 taper No.40 |
| Automatic Tool Changer |
| ATC type |
type |
Arm type |
| Tool shank |
type |
BT-40 |
| Pull stud |
type |
P-40T (45°) |
| Tool storage capacity(OPT) |
pcs. |
24(30 / 32 / 40) |
| Max. tool diameter |
mm(in) |
Ø80(Ø3.1") |
| Max. tool diameter (Adjacent empty) |
mm(in) |
Ø150(Ø5.9") |
| Max. tool length |
mm(in) |
250(9.8") |
| Max. tool weight |
kg(lb) |
7(15) |
| Tool change time (Tool to Tool) |
sec. |
2.5 |
| Tool change time (Chip to Chip) |
sec. |
7 |
| Feedrate |
| Rapid feedrate (X / Y / Z) |
m(in)/min |
36 / 36 / 24
(1,417.3 / 1,417.3 / 994.8) |
| Cutting feedrate |
mm(in)/min |
10,000(393.7) |
| Other |
| Floor plan (W × D) |
mm(in) |
3,750 × 2,500(147" x 98") |
| Machine weight |
kg(lb) |
8,500(18,739) |
| Max. machine hight |
mm(in) |
2,800(110") |
| Air source |
kg/cm2(PSI) |
6~8(85~113) |
| Power capacity |
KVA |
25 |
