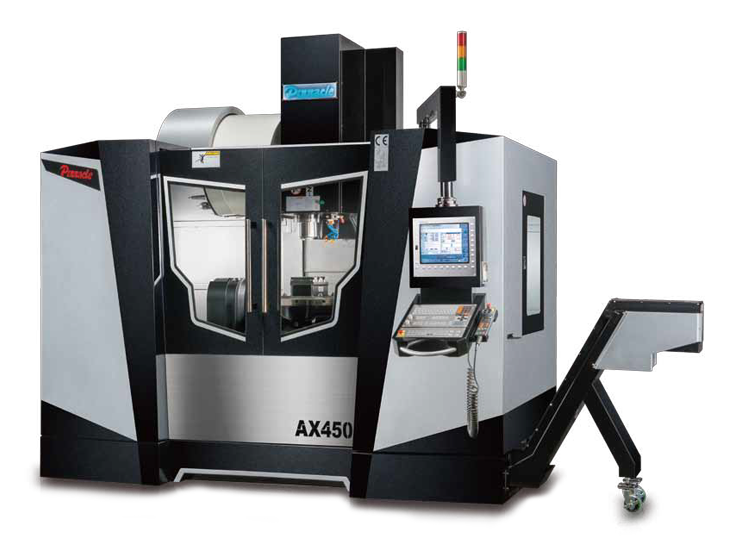

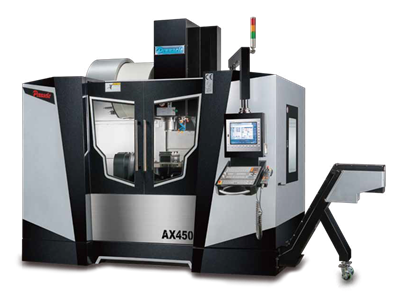

| TABLE |
|
| Table Size (mm) |
Ø450 |
| Travel Ranges (X x Y x Z mm) |
760 x 610 x 560 |
| T Slot Size (Size x deg ) |
14 x 45 |
| Max. Table Load (0°/90°) |
300 /250 |
| Max. Workpiece Size (W x H mm) |
Ø600x 300 |
| Diameter of Table Hole (mm) |
Ø171 |
| Spindle Nose to Table Surface (mm) |
50~565 |
| A Axis, Tilt (deg)/(0.001°) |
220°(±110°) |
| C Axis, Rotary (deg)/(0.001°) |
360° |
| SPINDLE |
|
| Tool Shank & Pull Stud |
ISO40 |
| Spindle Inner Diameter (mm) |
Ø70 |
| Spindle Speed (rpm) Direct drive |
10000 (12000/15000) |
| Spindle Speed (rpm) Built-in |
18000 (20000/24000) |
| Main Motor (con/30 min Kw) |
9/12 |
| AXIS SERVO MOTOR |
|
| Rapid Feed Rate (X/Y/Z m/min) |
30/30/24 |
| Feed Rate (X/Y/Z/ m/min) |
10 |
| Feed Rate (A/C rev/min) |
5.5/11.5 |
| X Axis Rated Torque (Nm) |
10 |
| Y Axis Rated Torque (Nm) |
10 |
| Z Axis Rated Torque (Nm) |
10 |
| A Axis Rated Torque (Nm) |
10 |
| C Axis Rated Torque (Nm) |
10 |
| AUTO TOOL CHANGER |
|
| ATC Type |
DISK - 24,30(Chain-40) |
| Cam Type |
ARM |
| Tool Selection (Bi-direction) |
RANDOM |
| Tool Storage Capacity (PCs) |
24 (30,40) |
| Max. Tool Diameter (mm) |
90 (76) |
| Max. Tool Length |
300 |
| Max. Tool Weight |
8 |
| MISCELLANEOUS |
|
| Air Requirement (Kg/cm2) |
6 |
| Hydraulic Requirement (Kg/cm2, L) |
40, 30L |
| Voltage |
380 |
| Power Requirement (KVA) |
40 |
| Coolant Tank Capacity (L) |
300 |
| Machine Weight (KGs) |
7000 |
| Machine Height (mm) |
2900 |
| Floor Space (L x W mm) |
3100 x 2230 |
| Packing Size (L x W x H mm) |
3100 x 2230 x 2560 |
